Product data sheet

Zaab 1 Floodlights,projectors

ZA-50001-M-W40-A52431

LIGMAN

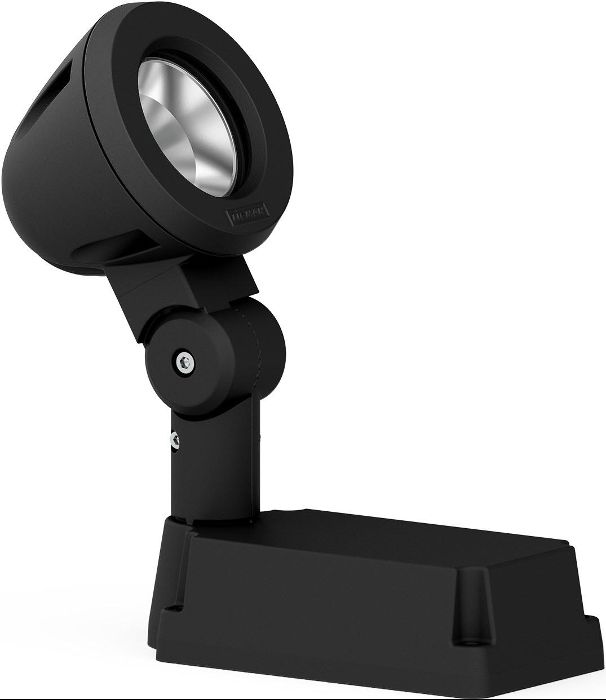

Product image 1: Zaab 1 Floodlights,projectors
Product image 1: Zaab 1 Floodlights,projectors

Product image 1: Zaab 1 Floodlights,projectors



IP
66

IK
07

- Lamp COB - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour 3000K , 4000K - Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance - Single cable entry - Through wiring on request - Stainless steel fasteners in grade 316 - Durable silicone rubber gasket - High-efficiency optical reflector - Clear toughened glass - Integral control gear

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 21.1 W 1181 lm 56 lm/W 4032 K 80
Zaab 1 Floodlights,projectors

Zaab 1 Floodlights,projectors

Light output 1 (integrated)

LED

Mounting mode

Standing / Bollard, Wall mounted

Shape and measurements

Height: 290 mm

Diameter: 125 mm

Weight: 2.8 kg

Adjustability

Fixed

Design

Colour of housing: Black, White, Silver gray

Glare protection

Glare protection: UGR < 19

Electric

System power: 21.1 W

Voltage: 230 V AC

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Protection

IP: 66

IK: 07

Surface temperature: 40°C

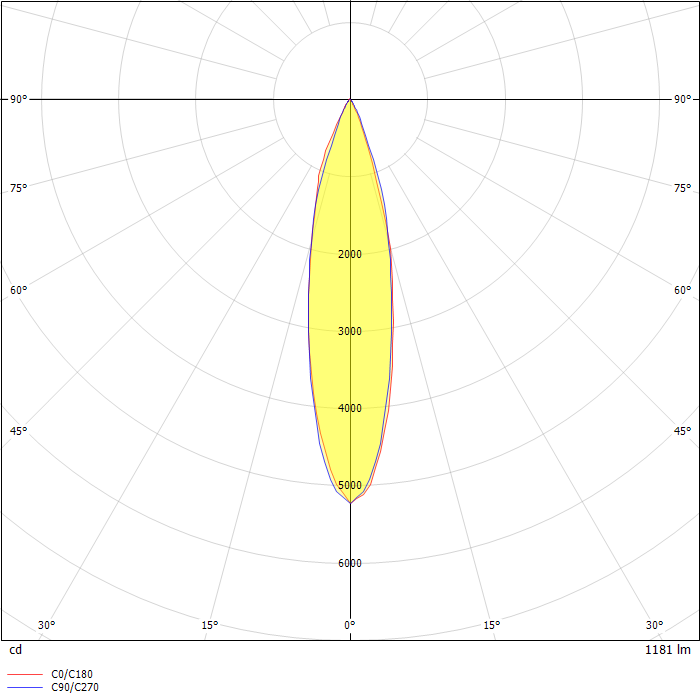

Photometric data

ZIP file

Download file
