• Safety luminaire with LED technology for recessed mounting • Unobstrusive, discrete appearance with round design and low installation depth of only 40 mm • Conversion to square design with optional bezel to fit to the ceiling plan if necessary • Special LED optics ensure especially efficient escape route illumination or uniform anti-panic illumination • High Spacing by exact light direction and highly-efficient HighPowerLEDs • Up to 27 m from luminaire to luminaire with optics for escape route illumination • Up to 12 m from luminaire to luminaire with optics for antipanic illumination • Minimum service requirement due to high service life of the LEDs (50,000 hours)
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 3.9 W | 250 lm | 64 lm/W | 6000 K | 65 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 44 mm
Diameter: 80 mm
Adjustability
Fixed
Design
Colour of housing: White
Electric
System power: 3.9 W
Suitable for feed-through wiring
Appliance Class: II
Information regarding emergency functions
Emergency lighting only
Emergency power supply: Central battery feed-in
Emergency sign: N/A
Protection
IP: 41
IK: 03

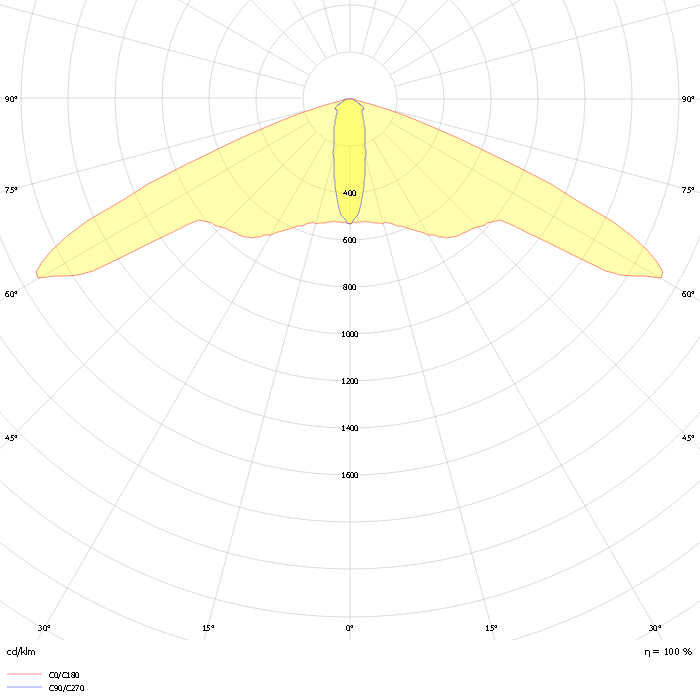

Photometric data
ZIP file
