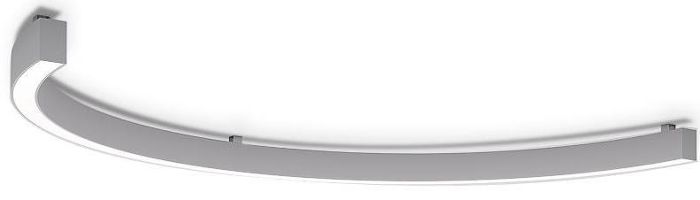

- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour Temperature 3000K ,4000K - Diffuser for light output control O – Opal diffuser UGR <19 Modern designed ring shaped with radians of 1/2, 1/4, 1/8 and 1/16th of a circle surface, recessed and pendant mounted ceiling luminaires with symmetrical up and down lighting for general or specialized lighting requirements. Lighting control system. · Wireless control employing the Bluetooth® 4.0 protocol controlled via Ligman’s mobile App or physical control via xPress switch · Daylight and occupancy sensor options. Extruded aluminium bended profile with 316 grade stainless steel fasteners. Opal PMMA diffuser for glare control. Built-in driver. Passive thermal management. Surface ceiling mountings with the use of steel support and screws. Pendant mounting with the application of adjustable steel suspension (1m) complete with electrical wires in white. Applications: private residences, offices schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel and similar installations.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 36 W | 3638 lm | 101 lm/W | 4032 K | 80 |
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 36 W | 3638 lm | 101 lm/W | 4032 K | 80 |
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 36 W | 3638 lm | 101 lm/W | 4032 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 70 mm
Diameter: 300 mm
Weight: 1.9 kg
Adjustability
Fixed
Design
Colour of housing: Black, White, Silver gray
Glare protection
Glare protection: UGR < 19
Electric
System power: 108 W
Voltage: 230 V AC
Ballast: ECG
Controller: Dimmable 1..10V, DALI
Appliance Class: I
Integrated sensors
Integrated sensors: Daylight sensor, Motion sensor, Presence sensor
Protection
IP: 20
Surface temperature: 40°C
Designation labels: CE, ENEC, UL

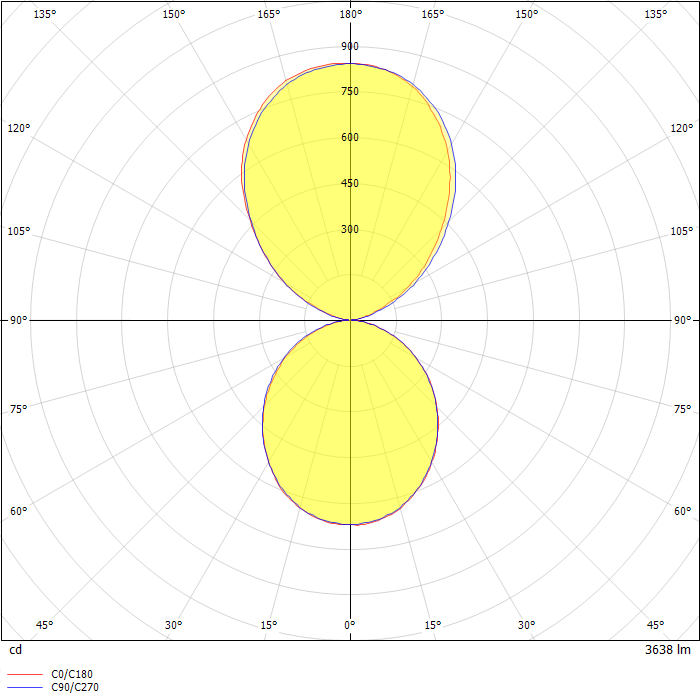

Photometric data
ZIP file
