Product data sheet

DOWNLIGHTS - Freska 4000K

AFRE2/1 + AHUEMKIT/LI (4000K)

Ansell Lighting

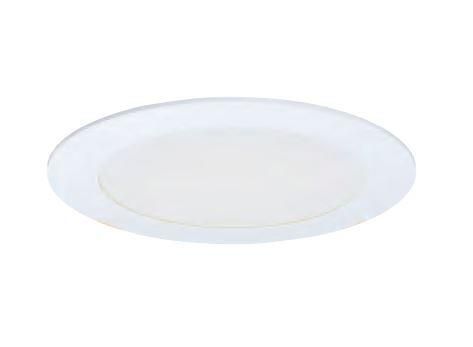

AFRE2/1 DISPLAY Freska LED Supplied c/w Remote Driver • Economic ultra-slim circular LED performance downlight suitable for education, commercial, healthcare and retail applications • CCT selectable between 3000K, 4000K and 6000K • Ideal for use in areas with shallow ceiling void • Edge lit providing excellent uniform illumination • Triac dimmable as standard • Standard and Self-Test Emergency available using the Hawk Kit Emergency Pack • LED lifespan L80 54,000 hours • Suitable for internal use only • 5 Year Product Warranty • IP44

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12.2 W 1289 lm 106 lm/W 3000 K 70
DOWNLIGHTS - Freska 4000K

DOWNLIGHTS - Freska 4000K

Light output 1 (integrated, emergency)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12 W 1289 lm 107 lm/W 4000 K 80
DOWNLIGHTS - Freska 4000K

DOWNLIGHTS - Freska 4000K

Light output 2 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 1 mm

Diameter: 180 mm

Adjustability

Fixed

Design

Designer: Dominic Harkness

Electric

System power: 24.2 W

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 44

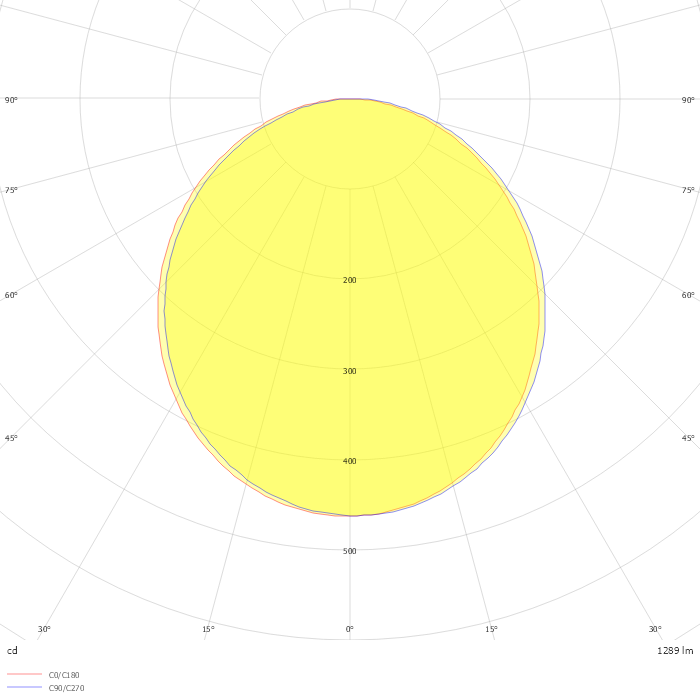

Photometric data

ZIP file
