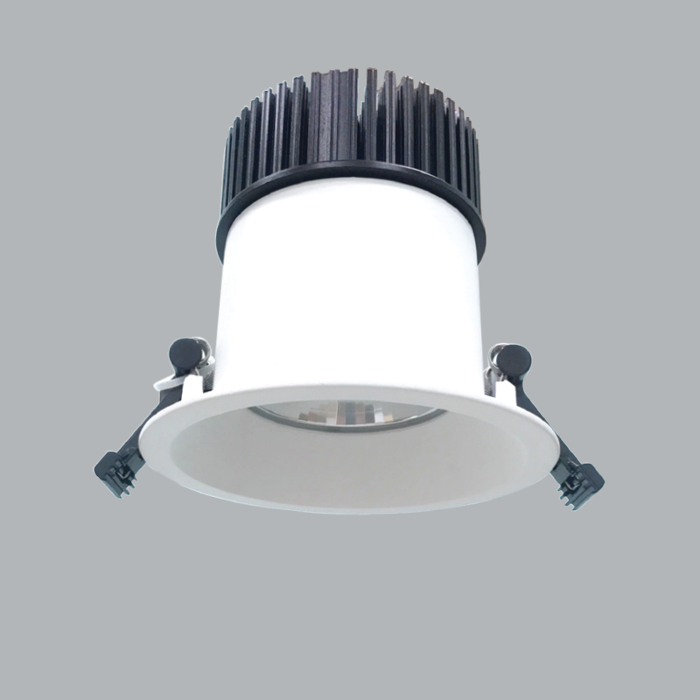

- Round shape - Recessed - mounted on ceiling - Aluminum alloy body and cooling wings in body used electro static power coating technology to diffuse heat better - The lamp meets the IP65 standard for water and dust resistance - Detachable driver for easy connection - Size: Ø95 x 98 mm - Cut out: Ø85mm - Voltage: 175-265VAC - Power: 12W - Power Factor (PF): >0.5 - Luminance: 1080 lm - Color Temperature (CCT): 2800-3200K - RA >80 High Color Rendering Index - Beam angle: 14◦ - Chip LED: COB (Chip on Board) - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE – RoHS
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 12 W | 1080 lm | 86 lm/W | 3000 K | 82 |
Mounting mode
Pendant, Ceiling recessed
Shape and measurements
Length: 95 mm
Width: 98 mm
Height: 93 mm
Adjustability
Fixed
Electric
System power: 12.5 W
Protection
IP: 65

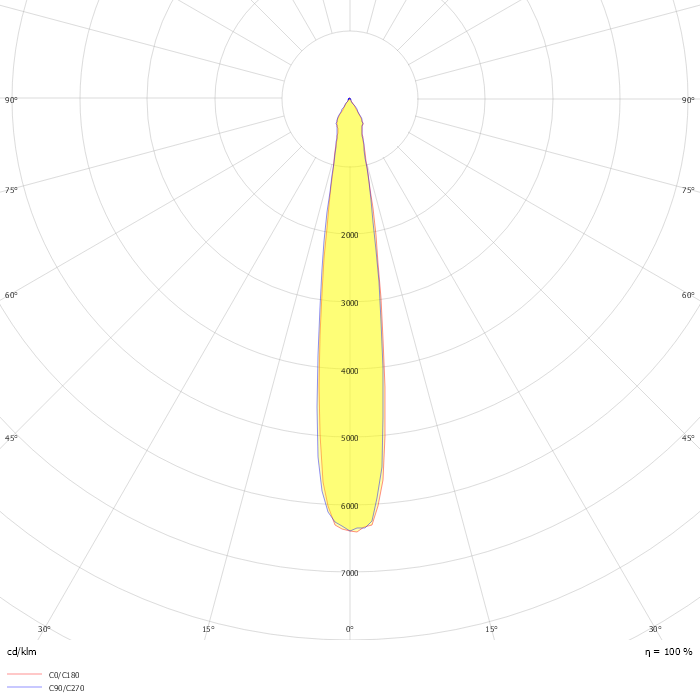

Photometric data
ZIP file
