Product data sheet

GALA XL 930 DIM8

275 161 93 ED8

Delta Light

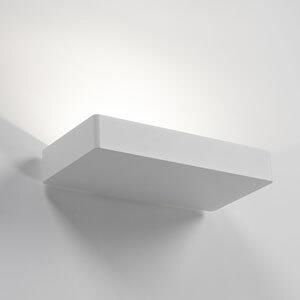

Product image 1: GALA XL 930 DIM8
Product image 1: GALA XL 930 DIM8

Product image 1: GALA XL 930 DIM8



IP
20

Luminaire, wall surface mounted (indoor use) from Deltalight, named GALA XL 930 DIM8, available in the colour(s): white. This luminaire is equipped with LED array 13,8W / CRI>90 (R9: 50) / 3000K / 1232lm with build-in dimmable driver to operate on a voltage of 220-240V / 50-60Hz. Dimming protocol: mains (phase cut-off). Light distributor: reflector 112°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 14 W 1232 lm 88 lm/W 3000 K 90
GALA XL 930 DIM8

GALA XL 930 DIM8

Light output 1

1 x LED

Mounting mode

Wall mounted

Shape and measurements

Length: 250 mm

Width: 134 mm

Height: 42 mm

Weight: 1.2 kg

Electric

System power: 14 W

Appliance Class: 0

Protection

IP: 20

Designation labels: CE

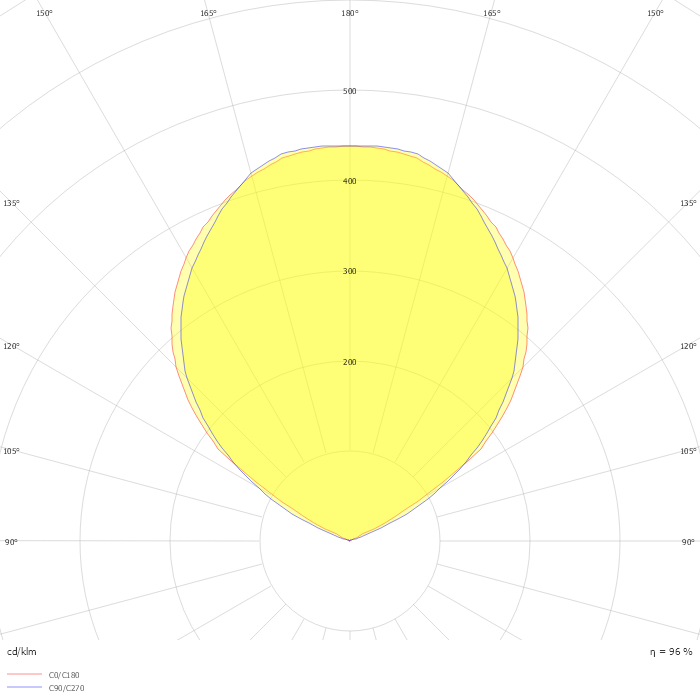

Photometric data

ZIP file

Download file
