Product data sheet

FLA740 [S60] IP66:HST-X4 250W/E40

147-0351

we-ef

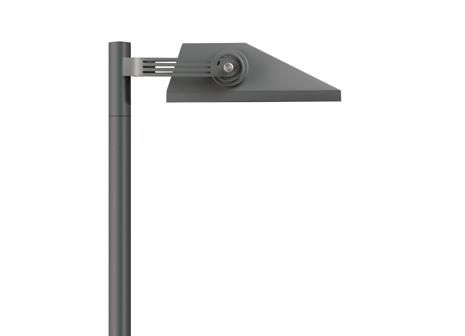

Product image 1: FLA740 [S60] IP66:HST-X4 250W/E40
Product image 1: FLA740 [S60] IP66:HST-X4 250W/E40

Product image 1: FLA740 [S60] IP66:HST-X4 250W/E40



IP
66

IK
08

IP66, Class I. IK08. Marine-grade die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Protractor scale for accurate aiming from 0° to 15° above horizontal. Control gear on hinged and 'no tool' removable gear tray. Anodised aluminium reflector. 'No tool’ lamp replacement.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x High pressure sodium vapour lamp 250 W 33200 lm 83 lm/W 2000 K 22
FLA740 [S60] IP66:HST-X4 250W/E40

FLA740 [S60] IP66:HST-X4 250W/E40

Light output 1

1 x High pressure sodium vapour lamp

Mounting mode

Pole integrated

Shape and measurements

Length: 560 mm

Width: 330 mm

Height: 190 mm

Electric

System power: 275 W

Appliance Class: I

Protection

IP: 66

IK: 08

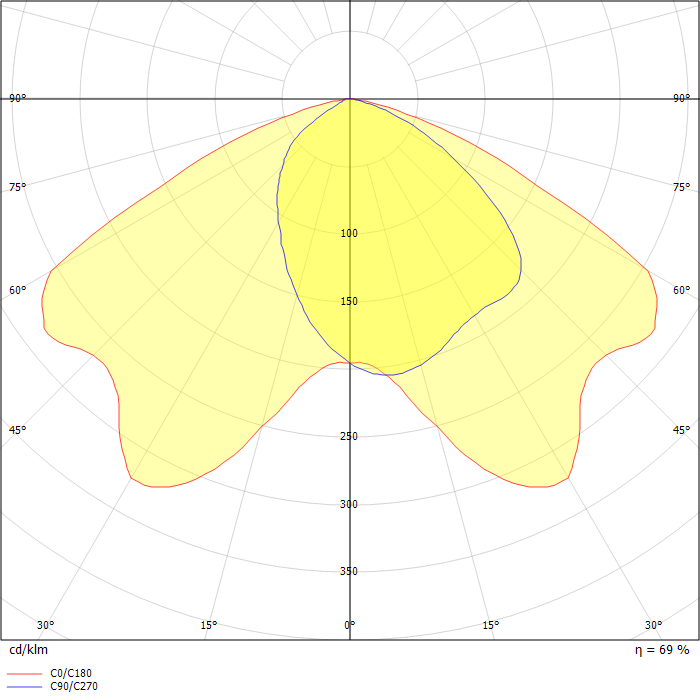

Photometric data

ZIP file

Download file
