Product data sheet
RWYC 1500 L22 MP LE3
RUNWAY CURVE EMERGENCY
Dextra

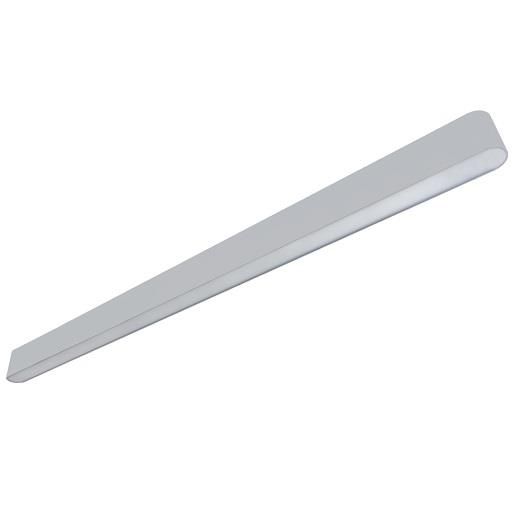

Runway Curve - 1500mm Surface/suspended linear luminaire, extruded aluminium trunking with painted finish and microprism diffuser. Options: LE3 - Lithium Emergency (360 lumens output) LS3 - Lithium Selftest LA3 - Lithium Autotest S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function)* RC - Reacta-Control Wireless Module RCS - Reacta-Control Wireless, Presence RLI - Reacta-Link Wireless Module GY - Grey Finish WH - White Finish BL - Black Finish RWY SUSP 3M BF x1- Runway 3M single point suspension kit RWY SMK - Runway Surface Mount kit (single point) RWYC INSTALL KIT - Runway Curve Installation Kit (1 Kit per installation)
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 12 W | 1589 lm | 132 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted, Pendant
Shape and measurements
Length: 1539 mm
Width: 65 mm
Height: 95 mm
Adjustability
Fixed
Glare protection
Glare protection: UGR < 19
Electric
System power: 15 W
Ballast: ECG
Controller: DALI
Integrated sensors
Integrated sensors: Daylight sensor, Motion sensor, Presence sensor
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
IP: 20
Designation labels: CE

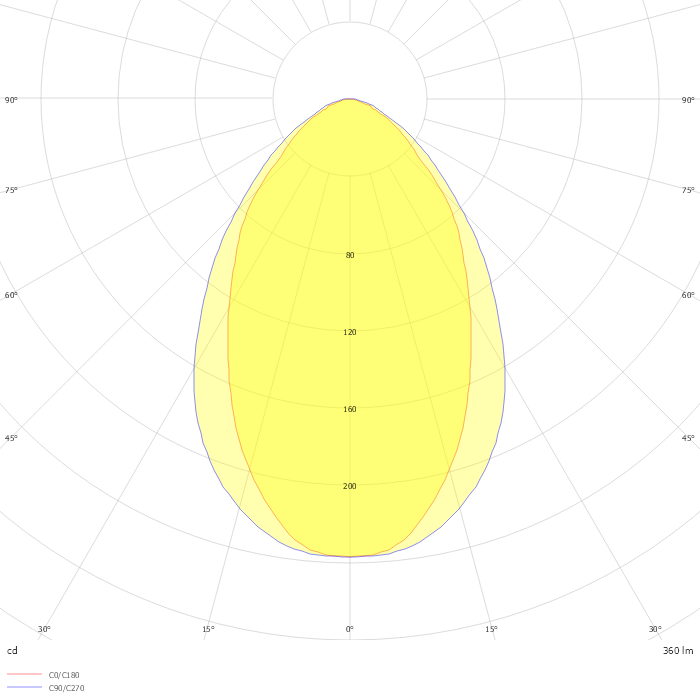

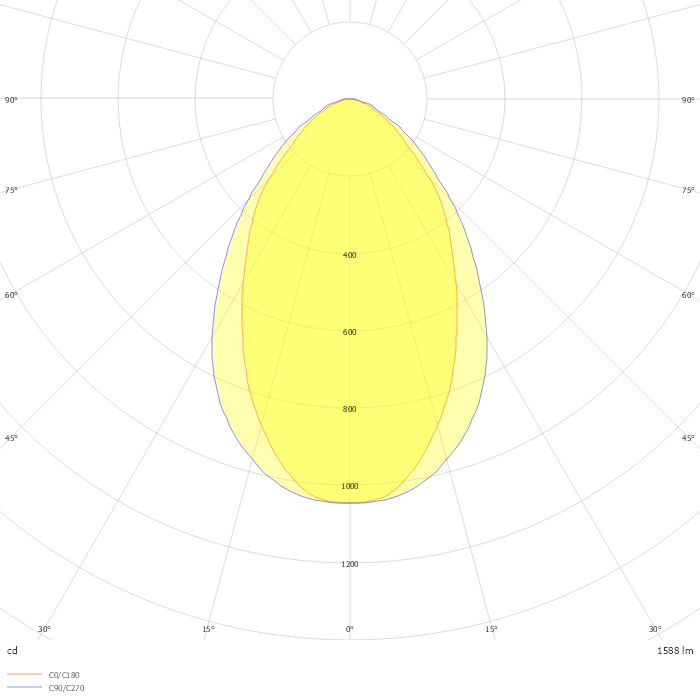

Photometric data
ZIP file
