Product data sheet

Cubic Evolution - F2

CF2AEX-840M-L600-U

Lightnet

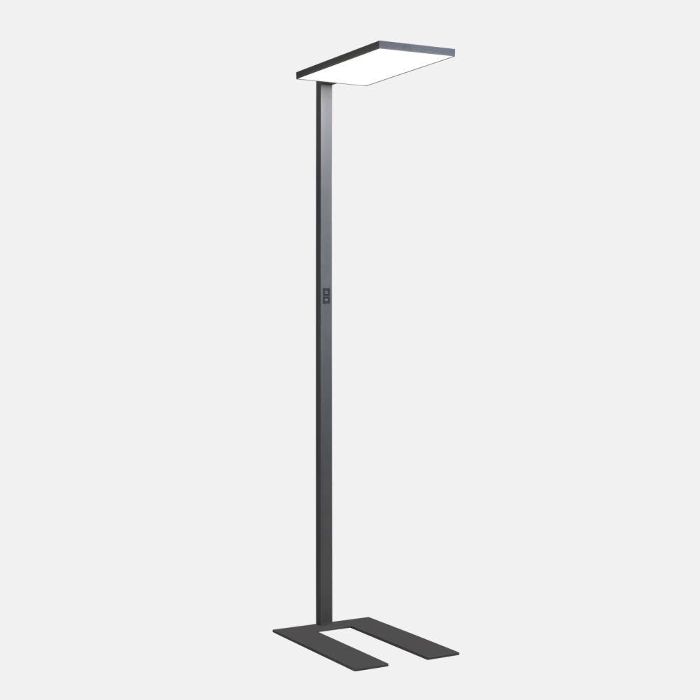

LED free-standing luminaire. Direct-indirect light distribution. Luminaire body with minimalistic overall height made of aluminium profile. Surface natural anodised or white, graphite, black or champagne coated as well as polished aluminium. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces with uniform and enhanced light transmission. Indirect light with innovative lens technology for wide-angle ceiling illumination. Intuitive control panel in luminaire pole for dimming and switching the direct/indirect light separately, alternatively togeher controlable via state-of-the-art sensor or swarm technology. Colour temperature 3000K, 3500K or 4000K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. Rectangular base plate made of steel with U- or Side Cut-Out for different table designs, colour matching luminaire body.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 68 W 11090 lm 163 lm/W 4000 K 82
Cubic Evolution - F2

Cubic Evolution - F2

Light output 1 (integrated)

LED

Mounting mode

Standing / Bollard

Shape and measurements

Length: 300 mm

Width: 600 mm

Height: 25 mm

Adjustability

Fixed

Electric

System power: 68 W

Protection

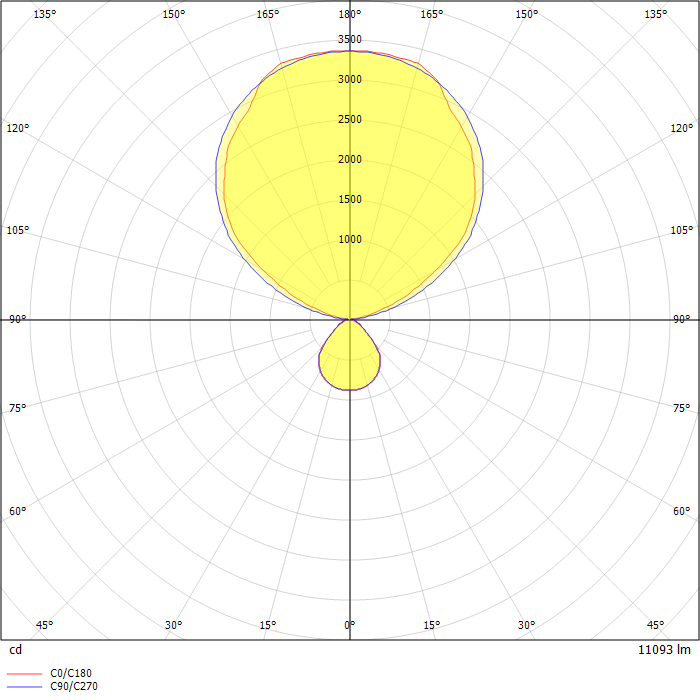

Photometric data

ZIP file
