Product data sheet

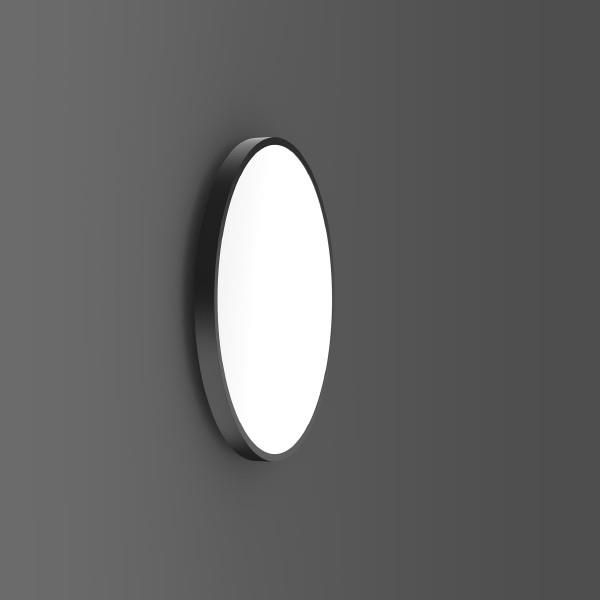

Triona Opal

312388.0031.1.76

RZB

Series: Triona Type of Protection: IP 20 Protection Class: I Voltage: 220 - 240 V / 50 - 60 Hz Halterung und Leuchtenrahmen Metall pulverbeschichtet. Diffusorsegmente (Lichtaustritt indirekt) aus vergilbungsfreiem Kunststoff (PMMA) opal. Diffusor (Lichtaustritt direkt) aus Kunststoff (PMMA) opal. Betriebsgerät eingebaut. Leuchtmittel (LED) im Lieferumfang enthalten. Available Colours: anthracite metallic Type of Installation: Ceiling mounting, Wall (surface) Dimensions: D 845, H 88 Lamp: LED Life time: 50000 h (L70/B10) Colour Temperature: 4000K Socket 1: without socket Operating Mode Lamp 1: Converter, dimmable, DALI Safety Marks: F-mark Impact Protection: IK03 (0,35 Joule) Luminaire flux LED: 9900lm System power: 110W Beam Angle: 104° Number of fittings B10A: 4 Number of fittings B16A: 7 Inrush current: 73A Unified Glare Ratio: 19,2 EEC: A++

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 110.3 W 9900 lm 90 lm/W 4000 K 80
Triona Opal

Triona Opal

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Height: 52 mm

Diameter: 845 mm

Adjustability

Fixed

Electric

System power: 110.3 W

Protection

IP: 20

IK: 03

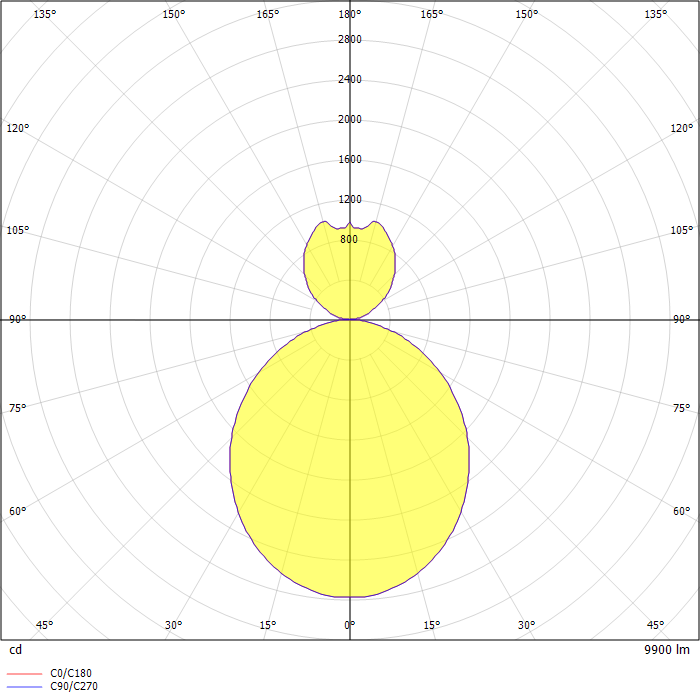

Photometric data

ZIP file
