Product data sheet

Circular Vertical Side ø900 Recessed

CP5K-00X9AZOU05

LedsC4

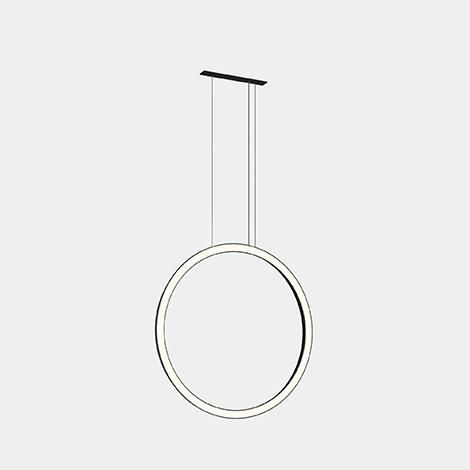

Product image 1: Circular Vertical Side ø900 Recessed
Product image 1: Circular Vertical Side ø900 Recessed

Product image 1: Circular Vertical Side ø900 Recessed



IP
20

LedsC4 Circular Vertical Side ø900 Recessed CP5K-00X9AZOU05V1 Pendant for indoor use. Structure finish: Black. Diffuser material: Softdiffuser. Diffuser finish: Opal. Warranty: 5 Years. Product net weight (Kg): 5 Product length (mm): 900 Product width or diameter (mm): 50 Product height (mm): 3700 Ø of the hole for recessing (mm): 330x42 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. Driver brand: MEANWELL. Maximum power of light source: 49.6W. Colour temperature: 4000K.… [more]

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 53 W 2992 lm 56 lm/W 4000 K 90
Circular Vertical Side ø900 Recessed

Circular Vertical Side ø900 Recessed

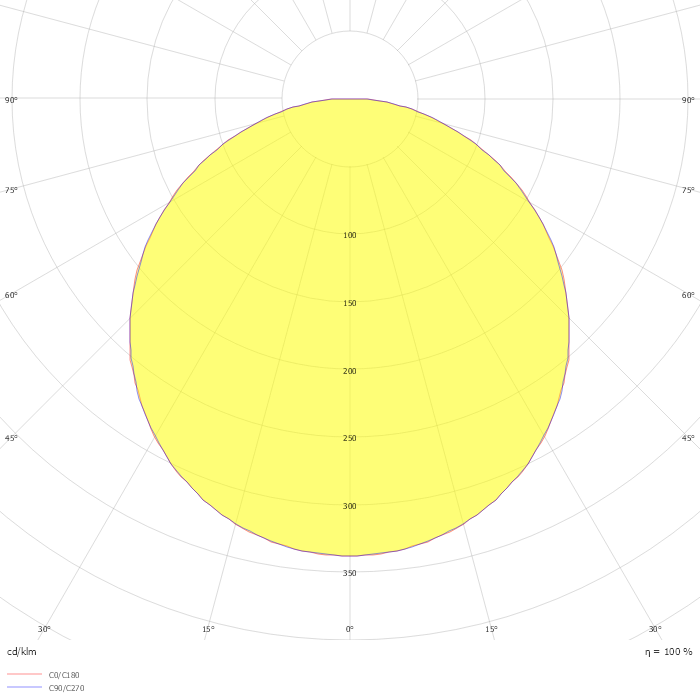

Light output 1

1 x LED

LOR:100%
Total flux:2992 lm
Total power:53 W

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 45 mm

Width: 900 mm

Height: 900 mm

Adjustability

Fixed

Electric

System power: 53 W

Appliance Class: I

Protection

IP: 20
