Product data sheet

ECLFRCTPSPCLK

ECLFRCTPSPCLK_4000K_MIN ZOOM_HQ

Prolights

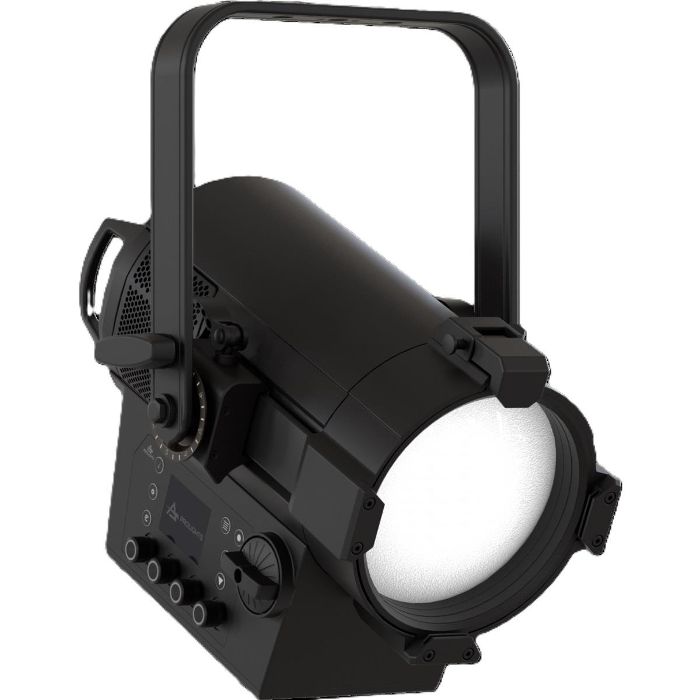

Product image 1: ECLFRCTPSPCLK
Product image 1: ECLFRCTPSPCLK

Product image 1: ECLFRCTPSPCLK



Product image 2: ECLFRCTPSPCLK

Product image 2: ECLFRCTPSPCLK



IP
20

IK
08

The new PC lenses from PROLIGHTS for the EclFresnel CT+ series are distinguished by their ability to optimize light intensity management and focus, ensuring uniform and well-directed illumination. These lenses allow for easy conversion of the EclFresnel CT+ S projectors from Fresnel to PC lens configurations, significantly broadening the range of applications—from theater productions to television studios—where precise control of light intensity and beam is essential. The kit is… [more]

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 131.5 W 2109 lm 16 lm/W 4067 K 97
ECLFRCTPSPCLK

ECLFRCTPSPCLK

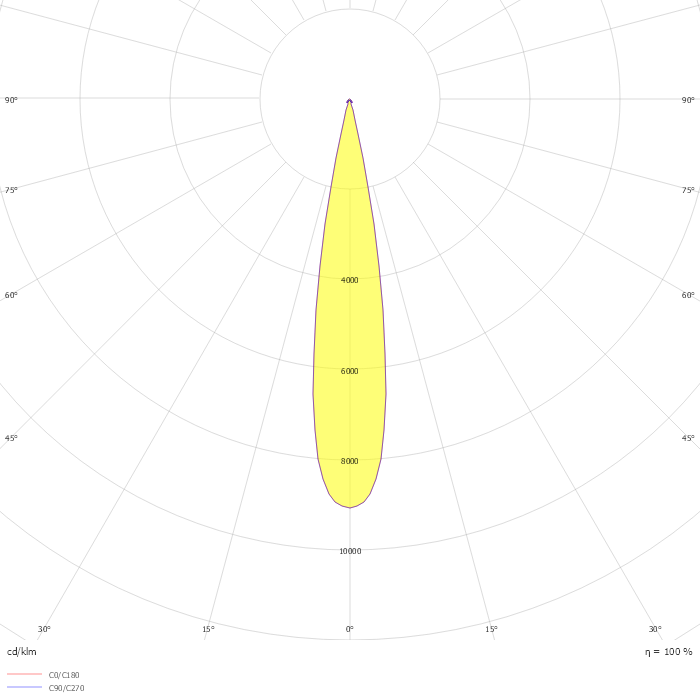

Light output 1

1 x LED

LOR:100%
Total flux:2113 lm
Total power:131.5 W

Mounting mode

Ceiling mounted, Standing / Bollard

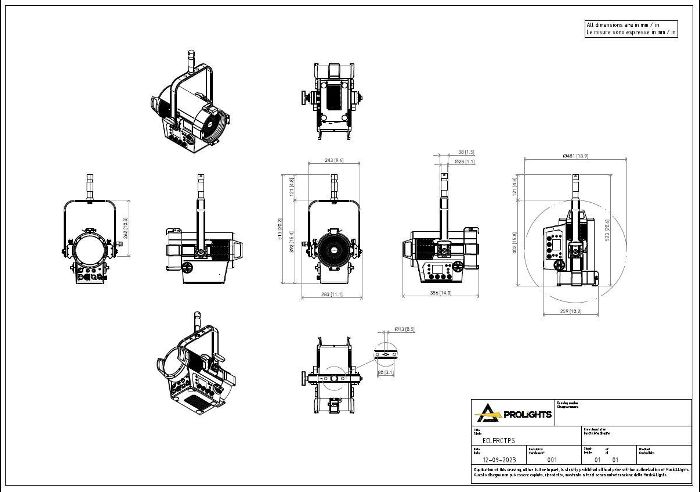

Shape and measurements

Length: 286 mm

Width: 80 mm

Height: 291 mm

Adjustability

Tiltable, Free

Electric

System power: 131.5 W

Controller: DMX

Colour adjustable

Appliance Class: I

Protection

IP: 20

IK: 08

Surface temperature: 70°C

Designation labels: CE
