Product data sheet

NLED5821C 1×12W 24°3500K 单头通用型格栅射灯

70075597

NVC

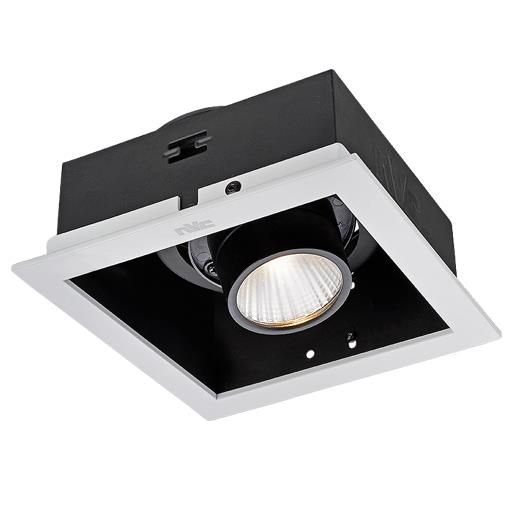

Product image 1: NLED5821C 1×12W 24°3500K 单头通用型格栅射灯
Product image 1: NLED5821C 1×12W 24°3500K 单头通用型格栅射灯

Product image 1: NLED5821C 1×12W 24°3500K 单头通用型格栅射灯



IP
20

IK
04

产品描述: 光源类型:优质COB芯片 驱动电源:外置隔离式恒流驱动 灯体材质:铝合金 面环颜色:半光白(70075597)、亮光银灰(70075621) 表面处理:喷涂(亮光银灰) 安装方式:嵌入式 投射调节:可调节(水平MAX ±355°,垂直MAX +30°) 系列可选 : 单灯头数 :单头/双头/三头 光通(lm):350/380/400/400(1×6W); 450/480/500/500(1×9W); 650/670/700/700(1×12W); 1350/1440/1500/1500(1×20W)。 光束(°):15/24 色温(K) :3000/3500/4000/5700 显指(Ra):80 功率(W) :1×6/2×6/3×6(NLED582*A); 1×9/2×9/3×9(NLED582*B); 1×12/2×12/3×12(NLED582*C); 1×20/2×20/3×20(NLED582*D)。 功率因数PF:0.80(NLED582*A); 0.90(NLED582*B、NLED582*C、NLED582*D)。 更新说明: 暂无更新,敬请期待。 更多信息: 暂无链接,敬请期待。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12 W 670 lm 56 lm/W 3500 K 80
NLED5821C 1×12W 24°3500K 单头通用型格栅射灯

NLED5821C 1×12W 24°3500K 单头通用型格栅射灯

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 130 mm

Width: 130 mm

Height: 78 mm

Adjustability

Rotatable, Free

Design

Material impression: Matt, Plastic

Colour of housing: White

Electric

System power: 12 W

Ballast: ECG

Controller: DALI

Appliance Class: II

Integrated sensors

Integrated sensors: Motion sensor

Protection

IP: 20

IK: 04

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -10...35°C

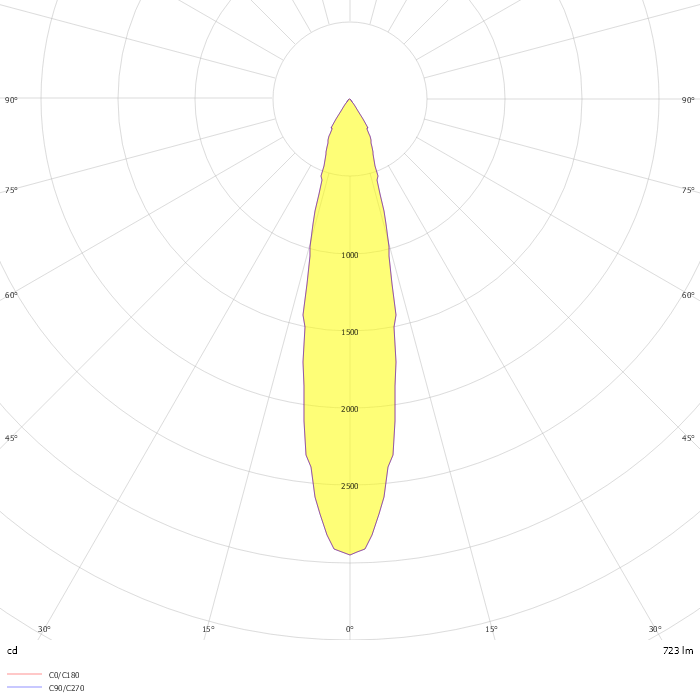

Photometric data

ZIP file
