Product data sheet

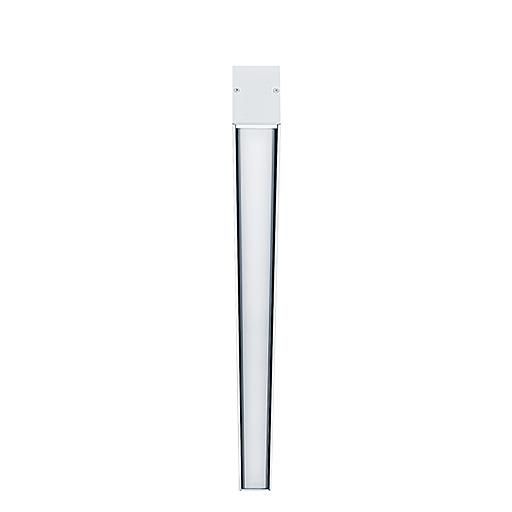

SLOIN slim SL LED4200-827 LDE L2754 PC

42183914

Zumtobel

DALI-dimmable LED light line with LED converter; with cover to 42m from one piece; LED service life lasts 50000 h before luminous flux is reduced to 85% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 4170 lm, Luminaire efficacy: 67 lm/W. Colour rendering Ra > 80, colour temperature 2700 K. Luminaire of aluminium, silver powder coated. Luminaire with completely uniform appearance due to polycarbonate cover. Luminaire consists of housing and continuous optic of polycarbonate. Includes gear tray, wiring, and end-cap set. Luminaire wired with halogen-free leads and covers are due to norm classified as TP(a). Degree of protection: IP20. Dimensions: 2754 x 45 x 64 mm weight: 6.9 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 61.9 W 4170 lm 67 lm/W 3000 K 80
SLOIN slim SL LED4200-827 LDE L2754 PC

SLOIN slim SL LED4200-827 LDE L2754 PC

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 2754 mm

Width: 45 mm

Height: 64 mm

Weight: 6.9 kg

Design

Material impression: Aluminum

Colour of housing: Silver gray

Electric

System power: 61.9 W

Voltage: 220-240 V AC

Controller: DALI

Appliance Class: I

Protection

IP: 20

Designation labels: CE, ENEC

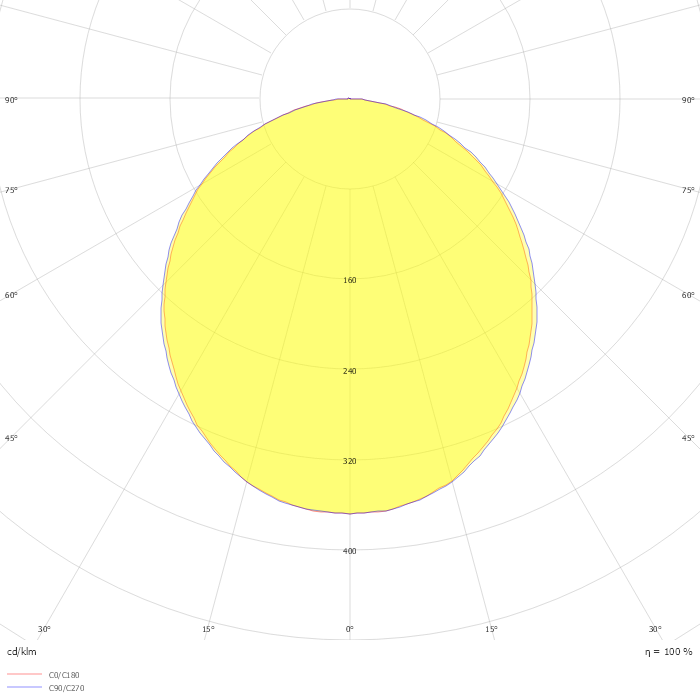

Photometric data

ZIP file
