Product data sheet

LAMPION MINI

LAMPION-Mini-CIR11-2LED-3000K-700 mA

Ragni

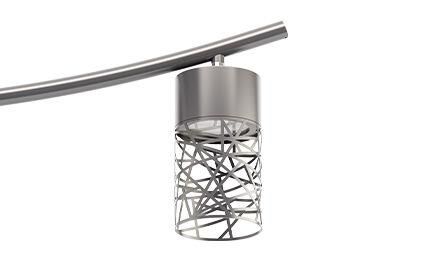

Designed for decorative lighting, Lampion is a range of cylindrical light fixtures in the form of an openwork stainless steel cage suspended from an aluminum electrical housing and protected by IK08 tempered glass. To provide atmospheric lighting, the Lampion range has an Zhaga-compatibles IP66 optical unit and a driver integrated into the head of the luminaire which allows, via a wide range of color temperatures and photometries, to precisely meet the lighting needs of the project while ensuring compliance with the regulations against light pollution. These Class I and II luminaires create ambiance through the play of light produced by the optional customizable cut-out patterns.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 54 W 3765 lm 70 lm/W 3000 K 70
LAMPION MINI

LAMPION MINI

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Height: 500 mm

Diameter: 250 mm

Adjustability

Fixed

Electric

System power: 54 W

Appliance Class: I

Protection

IP: 66

IK: 08

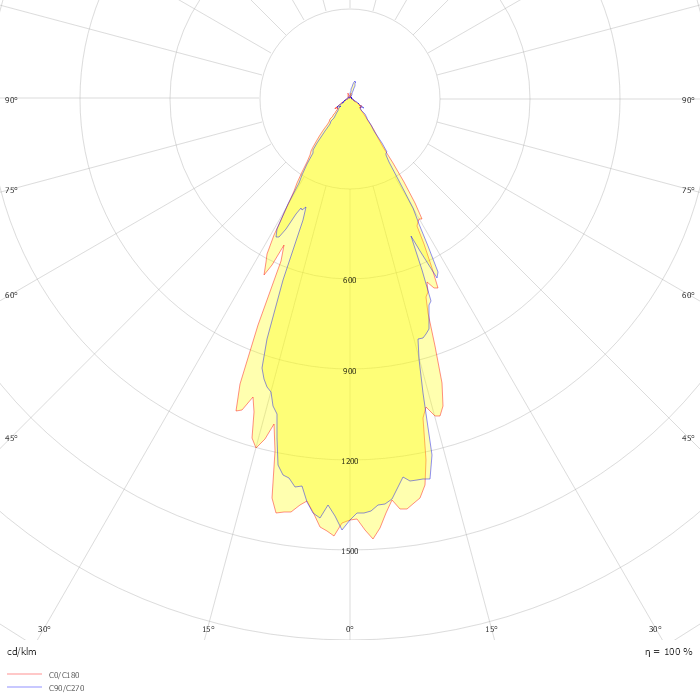

Photometric data

ZIP file
