Product data sheet

CODEMASTER JR. LED 1600 LUMEN NEMA TYPE V 5000 K CCT

CJLAL12CBU

Appleton (Emerson EGS)

Product image 1: CODEMASTER JR. LED 1600 LUMEN NEMA TYPE V 5000 K CCT
Product image 1: CODEMASTER JR. LED 1600 LUMEN NEMA TYPE V 5000 K CCT

Product image 1: CODEMASTER JR. LED 1600 LUMEN NEMA TYPE V 5000 K CCT



IP
66

Codemaster™ Jr.LED Factory Sealed luminaires Pendant Mount Codemaster™ Jr. LED Factory Sealed Luminaire Explosionproof, Dust-Ignitionproof 1600 Lumens 5000 K CCT/ 70 CRI Pendant/Ceiling Mount BU:-120-277 Vac, 50/60Hz, 100-300 Vdc, BH:-347-480 Vac 50/60 Hz 3/4" NPT Hub Clear Glass Gobe Class I, Division 1, Groups B,C, D Class II,Division 1, group E,F,G Class III Zone 1,Ex db IIB+H2 Suitable for Use in Wet Locations Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12.9 W 1627 lm 126 lm/W 5181 K 70
CODEMASTER JR. LED 1600 LUMEN NEMA TYPE V 5000 K CCT

CODEMASTER JR. LED 1600 LUMEN NEMA TYPE V 5000 K CCT

Light output 1 (integrated)

LED

Mounting mode

Pendant, Ceiling mounted

Shape and measurements

Height: 145 mm

Diameter: 114 mm

Adjustability

Fixed

Electric

System power: 12.9 W

Appliance Class: I

Protection

IP: 66

Explosion zone suitability: 1

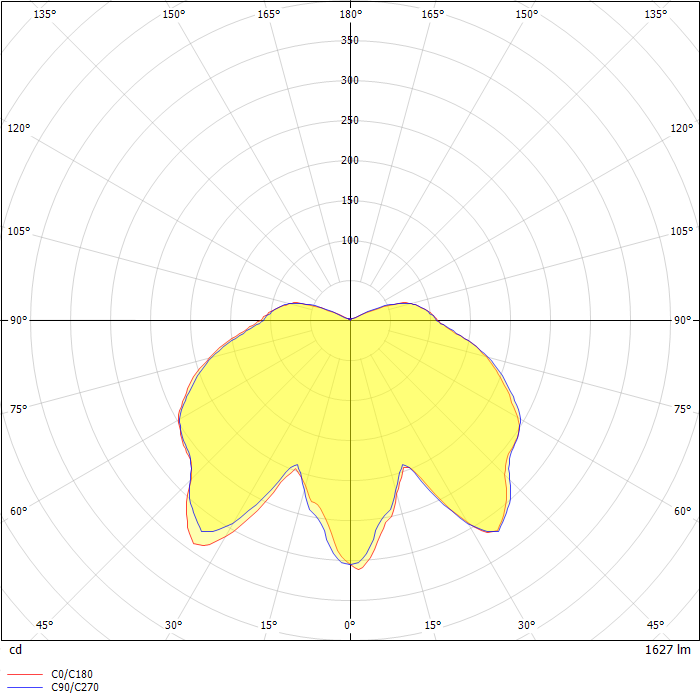

Photometric data

ZIP file

Download file
