Product data sheet

URBINI LED 36W 3800lm 3000K IP66 O9 - for bike paths gray I

130232.5L281.101

LUG

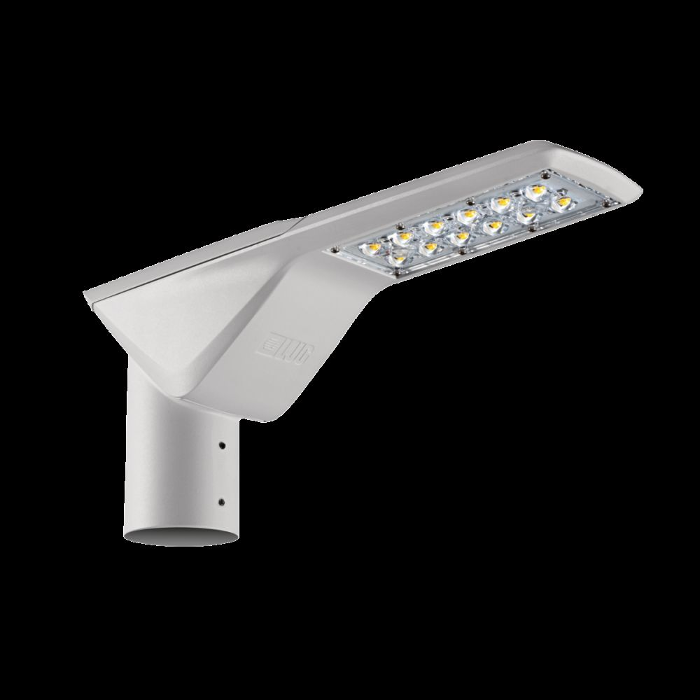

Product image 1: URBINI LED 36W 3800lm 3000K IP66 O9 - for bike paths gray I
Product image 1: URBINI LED 36W 3800lm 3000K IP66 O9 - for bike paths gray I

Product image 1: URBINI LED 36W 3800lm 3000K IP66 O9 - for bike paths gray I



IP
66

IK
08

Professional streetlight luminaire for LED light sources. Mounting: on pillar ø60mm, on horizontal and vertical pillars, on outriggers ø60mm, with mounting bracket (included) Body: high pressure die-cast aluminum Lateral Surface Wind Exposed: 0,029 m² Power: 220-240V 50/60Hz Lifetime (L90B10): 100 000 h Available on request: DALI, NTC, LLOC, 10kV surge protection Additional equipment: additional anti-corrosive protection (index extension: .985) Other remarks: the pole and boom are not part of the luminaire Warranty: 5 years Application: cycle paths, avenues, sidewalks, parks, parking areas, residential, public spaces, playgrounds, promenade, residential area roads Type of optics: O9 - for bike paths

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 36 W 3800 lm 106 lm/W 3000 K 70
URBINI LED 36W 3800lm 3000K IP66 O9 - for bike paths gray I

URBINI LED 36W 3800lm 3000K IP66 O9 - for bike paths gray I

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 407 mm

Width: 110 mm

Height: 120 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 36 W

Appliance Class: I

Protection

IP: 66

IK: 08

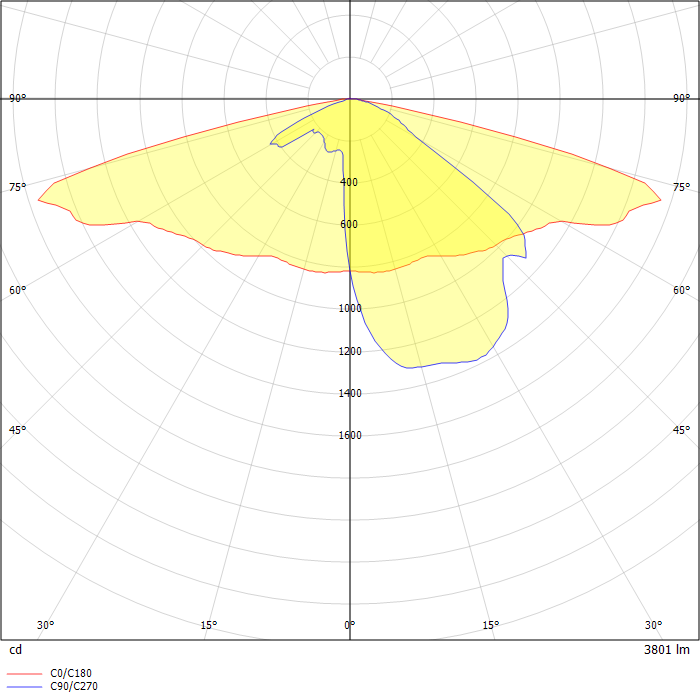

Photometric data

ZIP file
