Product data sheet

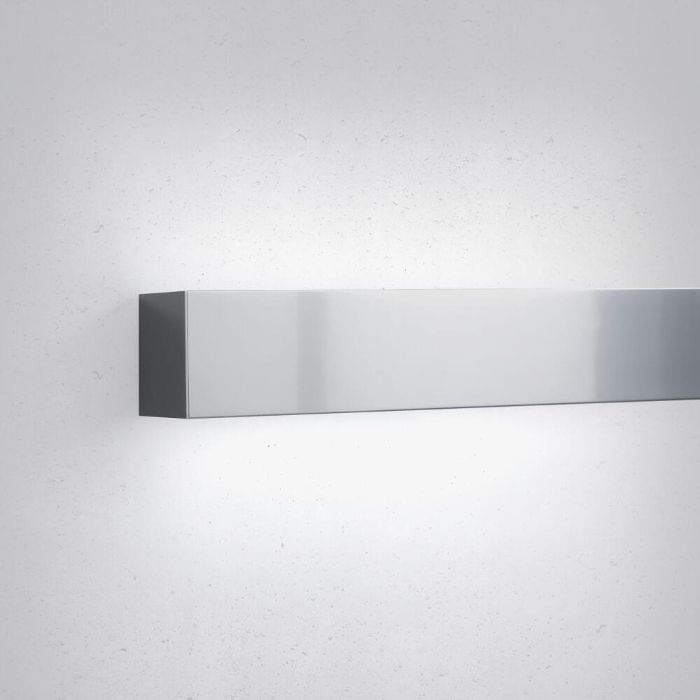

Matric 38mm Wall Direct-Indirect - W1

LW1BEE-840H-L600

Lightnet

LED wall mounted luminaire. Direct-indirect light distribution. Light channel made of aluminium profile with 38mm track width. Precise length production according to specifications possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Opal diffuser made of acrylic glass for general lighting. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. On request: Integration of emergency lighting components.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 27 W 2920 lm 108 lm/W 4000 K 82
Matric 38mm Wall Direct-Indirect - W1

Matric 38mm Wall Direct-Indirect - W1

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 600 mm

Width: 75 mm

Height: 75 mm

Adjustability

Fixed

Electric

System power: 27 W

Protection

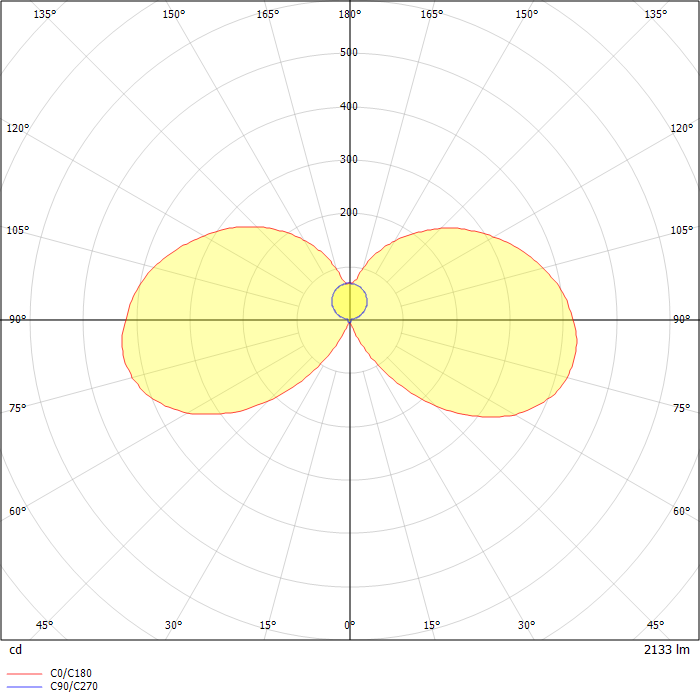

Photometric data

ZIP file
