Product data sheet

TRIONA round P

312362.002.1.76

RZB

Series: TRIONA round Decorative round LED pendant-mounted surface luminaire. Flat, seamless frame: aluminium extrusion profile, powder coated. Cover made of sheet steel, powder-coated. Canopy made of aluminium, powder-coated. Light emission through a diffuser in plastic, opal/prismatic. Lightguide and diffuser made of non-yellowing plastic (PMMA). Lateral light emission (RZB SIDELITE technology) for above-average homogeneous light distribution. 3-point steel cable suspension, steplessly adjustable. Easy installation with transparent, adjustable pendant cable and canopy with magnetic fixing. Driver integrated. Perfect for office areas (RUG < 19) and environments with computer screens in accordance with EN 12464-1. Colour: traffic white, matt (RAL 9016) Diameter: 1009 mm Height: 52 mm Suspension length: 500-1200 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI): 80 System power: 84 W Rated luminous flux: 9750 lm Beam angle Down: 95° Luminous efficiency: 116 lm/W Control gear: Converter, dimmable, DALI Protection class: I Type of protection: IP 20

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 84 W 9750 lm 116 lm/W 4000 K 80
TRIONA round P

TRIONA round P

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Height: 52 mm

Diameter: 1009 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 84 W

Protection

IP: 20

IK: 03

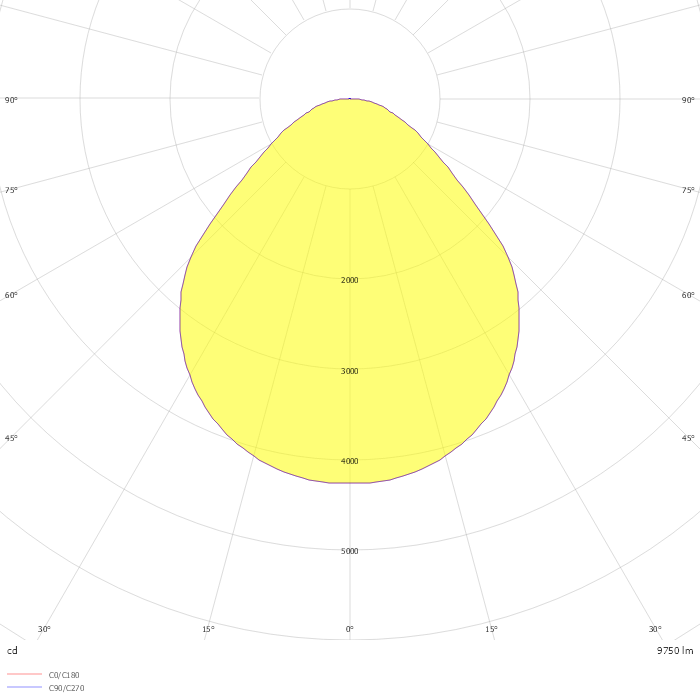

Photometric data

ZIP file
