Product data sheet

WHY1-P1466 50/50 5300 840 OP

Glamox

Light source LED 3400 - 11 000 lumen out Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3 Driver DALI. Driver life time up to 100.000 h/10 % (max failure) at Ta 25°C. Body material & colour Body in aluminum with opal diffuser on the sides. Body color: White. Mounting Delivered with ceiling box including 1,5m cable and wire suspension. Optics WHY1: Opal diffuser with opal diffuser on the sides. WHY3: Double parabolic louver (DL) with opal diffuser on the sides. Light management Luminaire sides powered by a separate circuit. 4 lighting control sections in the wireless version – direct, indirect and side light switched on separately. Wireless Lighting control via smartphone or the mobile, multifunctional Xpress button. Bluetooth system compatible with the CASAMBI app.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 50 W 5300 lm 106 lm/W 4000 K 80
WHY1-P1466 50/50 5300 840 OP

WHY1-P1466 50/50 5300 840 OP

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 1466 mm

Width: 45 mm

Height: 89 mm

Adjustability

Height adjustable

Electric

System power: 50 W

Protection

IP: 20

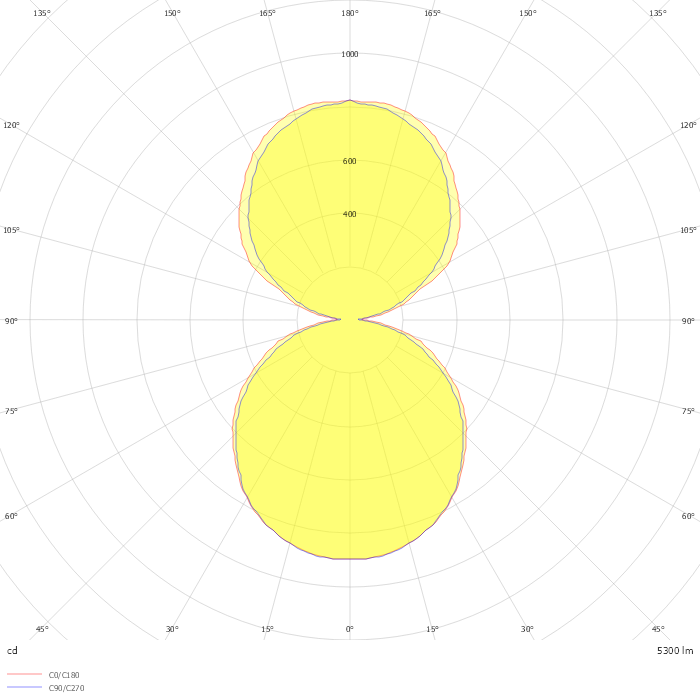

Photometric data

ZIP file
