Product data sheet

AREAMASTER LED 9500 LUMENS NEMA 7X 6 FROSTED GLASS

I/AMLGL6CF7

Appleton (Emerson EGS)

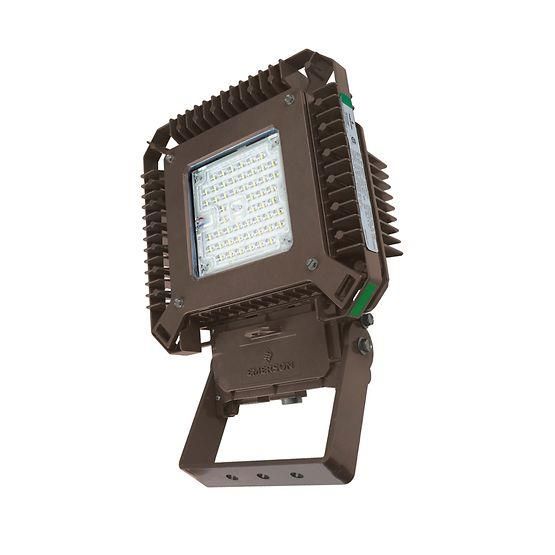

Product image 1: AREAMASTER LED 9500 LUMENS NEMA 7X 6 FROSTED GLASS
Product image 1: AREAMASTER LED 9500 LUMENS NEMA 7X 6 FROSTED GLASS

Product image 1: AREAMASTER LED 9500 LUMENS NEMA 7X 6 FROSTED GLASS



IP
67

IK
08

Areamaster LED Gen2 Flood light Series Pole Mount 9500 LUMENS, 5000 K CCT, NEMA 7X6 Yoke Mount BU-120-277 Vac, 50/60Hz, BH-347-480 Vac , 50/60Hz 3/4" NPT Hub NEMA 7 X 6 FROSTED GLASS Class I, Division 2, Groups A, B, C, D Class I, Zone 2 GROUP IIC TYPE 3R, 4, 4X IP66/67 Suitable for Use in Wet Locations Marine Outside (Salt Water) Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 69.5 W 7980 lm 115 lm/W 5181 K 86
AREAMASTER LED 9500 LUMENS NEMA 7X 6 FROSTED GLASS

AREAMASTER LED 9500 LUMENS NEMA 7X 6 FROSTED GLASS

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 159 mm

Width: 159 mm

Height: 130 mm

Adjustability

Free

Electric

System power: 69.5 W

Appliance Class: II

Protection

IP: 67

IK: 08

Explosion zone suitability: 2

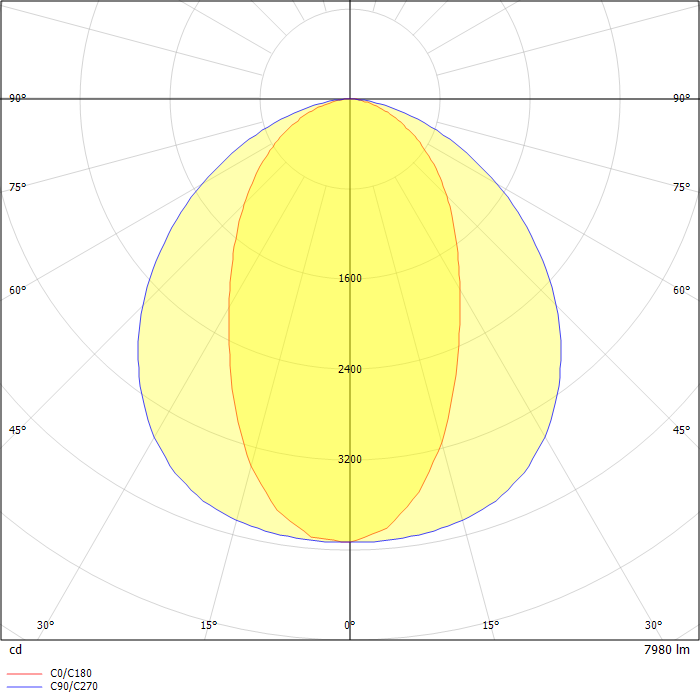

Photometric data

ZIP file

Download file
