Product data sheet

RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency

I/RMA42WDLBUE

Appleton (Emerson EGS)

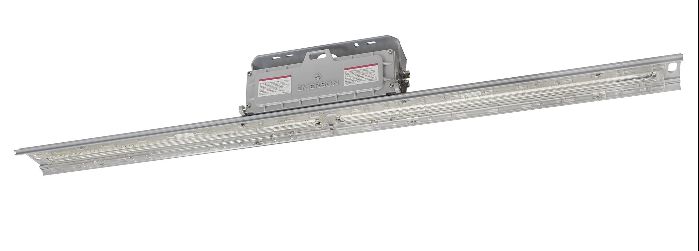

Product image 1: RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency
Product image 1: RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency

Product image 1: RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency



IP
66

Rigmaster LED Linear Series 180 min Emergency 3/4" NPT Hub NEMA Type V Symmetrical 3000 K CCT/ 80 CRI Voltage- BU-120-277V, 50/60Hz BH-347-480 Vac, 50/60Hz Class I, Division 2, Groups A, B, C, D Class I, Zone 2, Group IIC Glass II, Division 2, Group F, G Class II, Zone 22, Class III Type 3R,4, 4X IP66 Suitable for Use in Wet Locations Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI

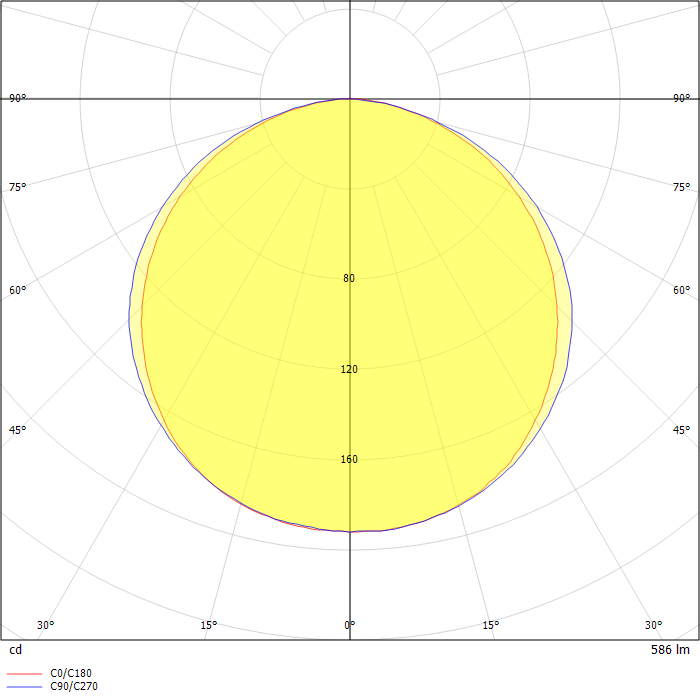

LED 6.49 W 586 lm 90 lm/W 3114 K 80
RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency

RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency

Light output 1 (integrated, emergency)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI

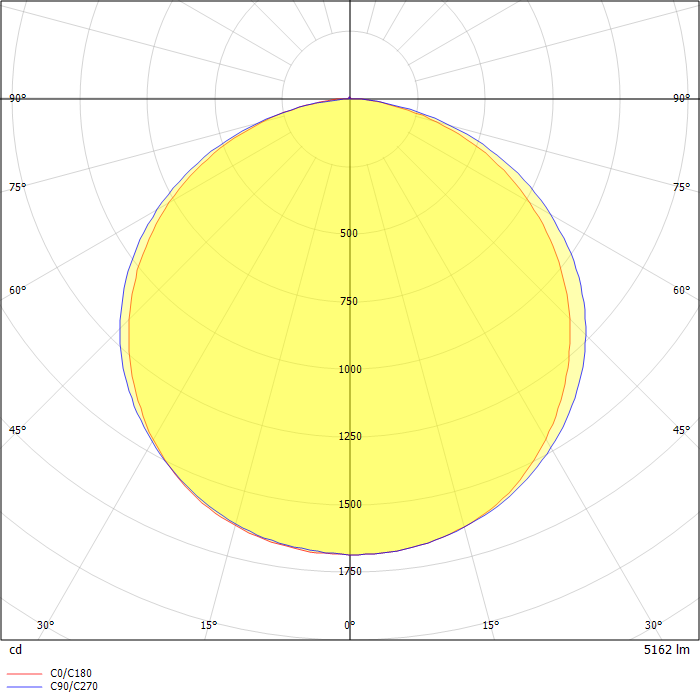

LED 55.32 W 5162 lm 93 lm/W 3000 K 80
RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency

RIGMASTER™ LED LINEAR 7650 LUMEN 3000 K CCT-Diffused PC- 180 min Emergency

Light output 2 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 45 mm

Width: 1050 mm

Height: 106 mm

Adjustability

Fixed

Electric

System power: 61.81 W

Appliance Class: II

Information regarding emergency functions

Supplementary emergency lighting

Emergency sign: N/A

Protection

IP: 66

Explosion zone suitability: 2, 22

Photometric data

ZIP file

Download file
