Product data sheet

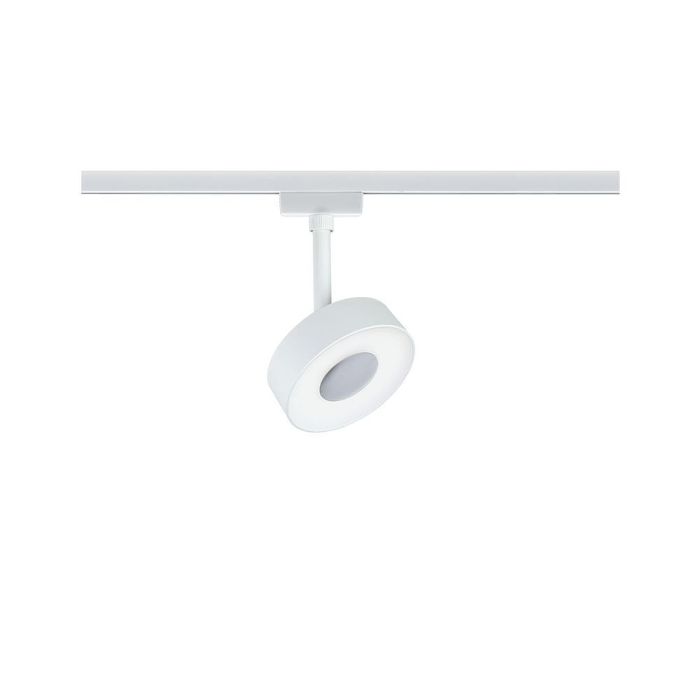

URail LED Schienenspot Circle 180lm 5W 4000K dimmbar 230V Weiß
95594
Paulmann
The neutral white URail Circle track luminaire in white is compatible with all URail articles. With the integrated 3-step-dim function, the luminaire can be dimmed in three steps by repeatedly pressing a standard light switch. Together with the corresponding URail components, a completely individual lighting system is created up to a total output of max.1000W.
Mounting mode
Pendant, Contact rail
Shape and measurements
Length: 59 mm
Width: 20 mm
Height: 42 mm
Weight: 0.22 kg
Adjustability
Fixed
Design
Material impression: Aluminum
Colour of housing: White
Electric
System power: 5 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE
Other operating numbers
Ambient temperature range: 4...4°C

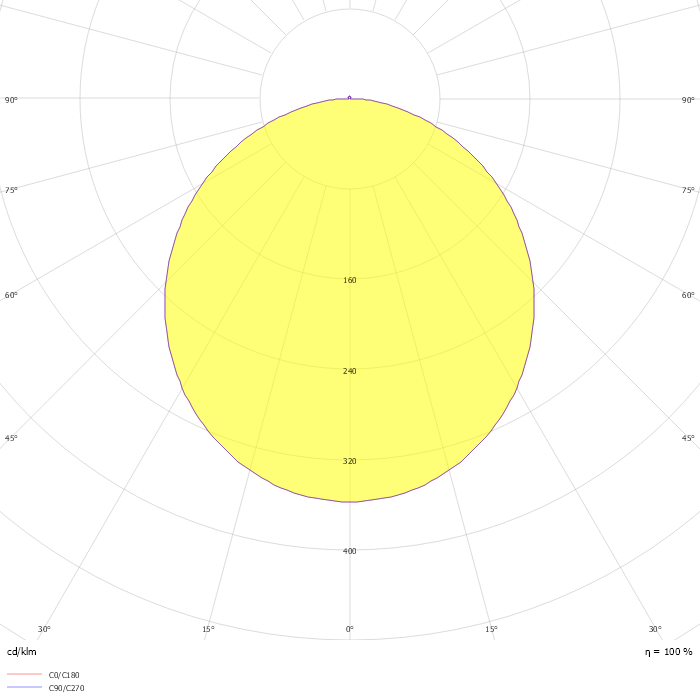

Photometric data
ZIP file
