Product data sheet

SRN L63 PC

Siren

Dextra

Product image 1: SRN L63 PC
Product image 1: SRN L63 PC

Product image 1: SRN L63 PC



IP
65

IK
07

Siren - 1500mm, IP65, IK07 Surface mounted moisture resistant luminaire. Polycarbonate body and diffuser with stainless steel diffuser retaining clips. Options: S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) H - HFR Analogue 1-10v C - Bi-Level Dimming (Corridor Function) RLI - Reacta-Link, Wireless Enabled Luminaire RC - Reacta-Control, Wireless Enabled Luminaire LE3 - Lithium Standard Emergency 3 Hour LS3 - Lithium Selftest Emergency 3 Hour LA3 - Lithium Autotest Emergency 3 Hour TRS - Tamper Resistant Screws TRS INSTALL KIT - Tamper Resistant Compatible Screwdriver Heads

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 39.3 W 5294 lm 135 lm/W 4000 K 80
SRN L63 PC

SRN L63 PC

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 1500 mm

Width: 100 mm

Height: 75 mm

Adjustability

Fixed

Electric

System power: 39.3 W

Ballast: ECG

Controller: Dimmable 1..10V, DALI

Appliance Class: I

Protection

IP: 65

IK: 07

Designation labels: CE

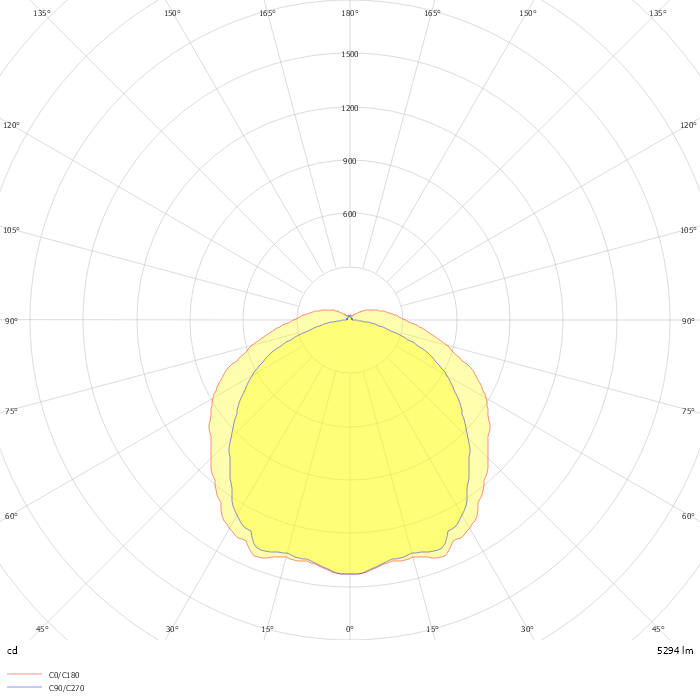

Photometric data

ZIP file

Download file
