Product data sheet

SafeSite LED Area Light 6500 Lumens, 360° Distribution, Polycarbonate Lens

ALD5BN27-XXXXX-N

Dialight

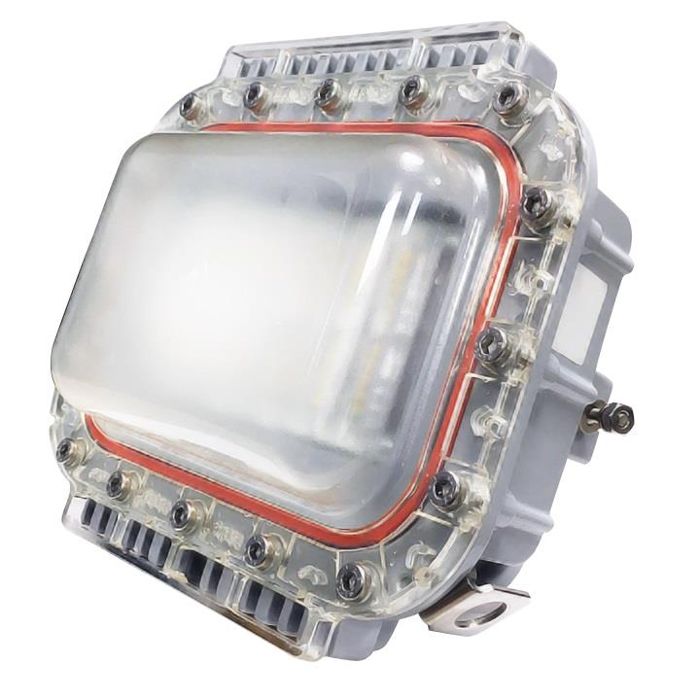

Product image 1: SafeSite LED Area Light 6500 Lumens, 360° Distribution, Polycarbonate Lens
Product image 1: SafeSite LED Area Light 6500 Lumens, 360° Distribution, Polycarbonate Lens

Product image 1: SafeSite LED Area Light 6500 Lumens, 360° Distribution, Polycarbonate Lens



IP
66

IK
10

SafeSite LED Area Light 6,500 Lumens 52 Watts 100-277V AC, 120-250V DC Neutral White, 80CRI Polycarbonate Lens Class I Div 2 Groups A,B,C,D Class III Div 1&2 UL 844 UL 1598/A CSA C22.2 No. 137-M81 NEMA 4X Factory Sealed IK10 360° Distribution IP66/67/69 Scaled IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 52 W 6501 lm 125 lm/W 3783 K 80
SafeSite LED Area Light 6500 Lumens, 360° Distribution, Polycarbonate Lens

SafeSite LED Area Light 6500 Lumens, 360° Distribution, Polycarbonate Lens

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 272 mm

Width: 246 mm

Height: 145 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 52 W

Voltage: 100 V AC, 277 V AC, 120 V DC, 250 V DC

Appliance Class: I

Protection

IP: 66

IK: 10

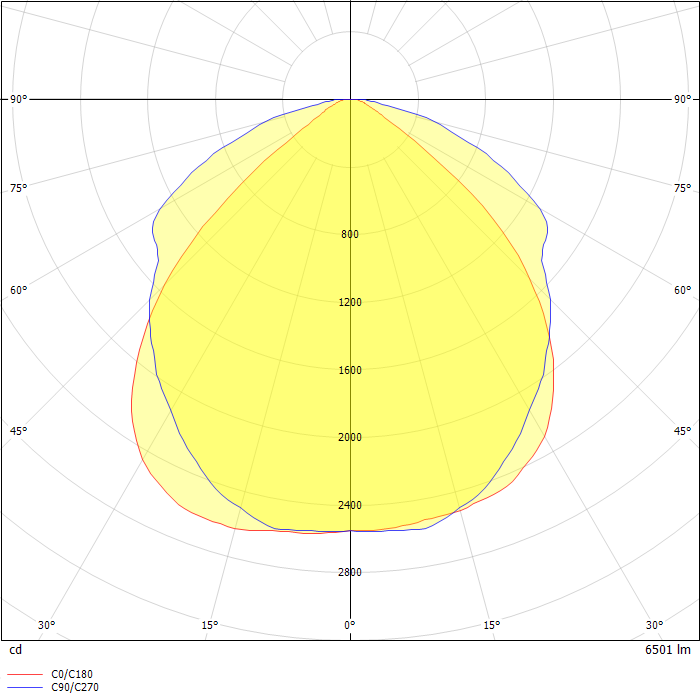

Photometric data

ZIP file

Download file
