Product data sheet

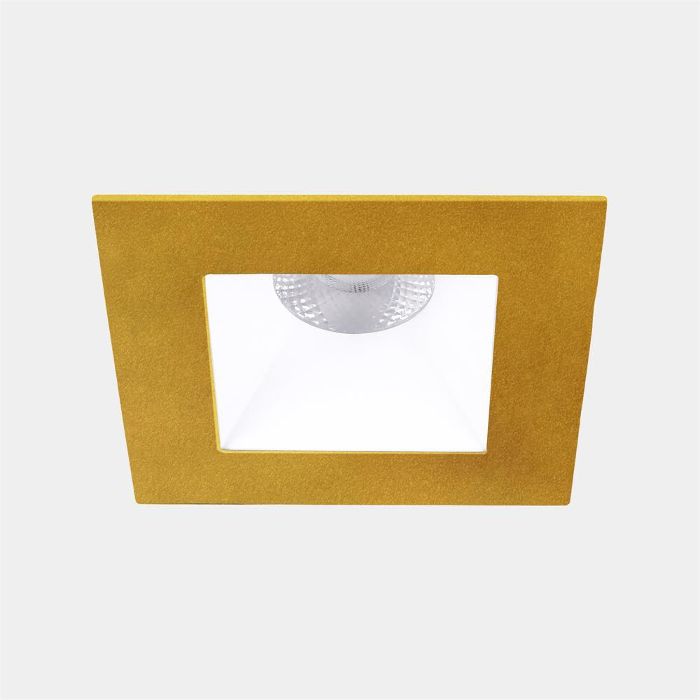

Play Deco Symmetrical Square Fixed Emergency
AG27-13V9M2D3WI
LedsC4
LedsC4 Play Deco Symmetrical Square Fixed Emergency AG27-13V9M2D3WI Downlight For downlighting. Structure material: Aluminium, Polycarbonate. Structure finish: Gold/White. Warranty: 5 Years. Product net weight (Kg): 0.94 Product length (mm): 110 Product width or diameter (mm): 110 Product height (mm): 112 Ø of the hole for recessing (mm): 100 Permitted ceiling thickness: 0-25 Class 2. Luminaire not suitable for coating with insulation materials. Glow wire test: 850. IP: IP54. IK: IK03. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Driver brand: VOSSLOH-SCHWABE. Maximum power of light source: 11.9W. Colour temperature: 2700K. Colour rendering index: 90. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 15.7. Photobiological risk: RG1. % de Flickering: <5%. Real flux (lm): 935. Real lm/W: 65. Voltage / frequency range: 100-240/50-60Hz. Voltage: 36. Equipment included: Yes. Total power: 14.3. Power factor: 0.88. Dimmable equipment included: DALI-2/PUSH. Emergency supply provision.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 1.92 W | 126 lm | 65 lm/W | 2700 K | 93 |
| 1 x LED | 14.3 W | 935 lm | 65 lm/W | 2700 K | 93 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 110 mm
Width: 110 mm
Height: 2 mm
Adjustability
Fixed
Electric
System power: 1.92-14.3 W
Appliance Class: II
Information regarding emergency functions
Emergency lighting only
Emergency sign: N/A
Protection
IP: 54
IK: 03

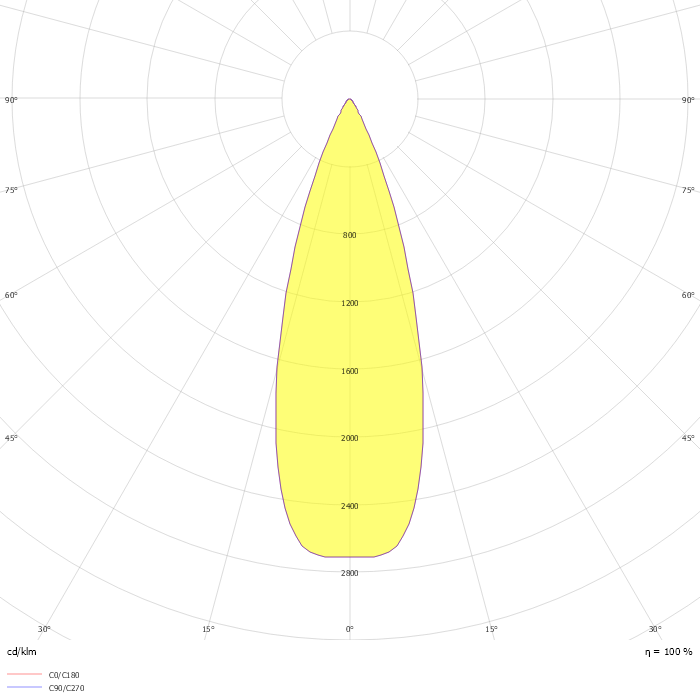

Photometric data
ZIP file
