Product data sheet

COMPACT LED EVO N 1200 5150lm PLX 840 (44W) DALI

628962

LENA LIGHTING

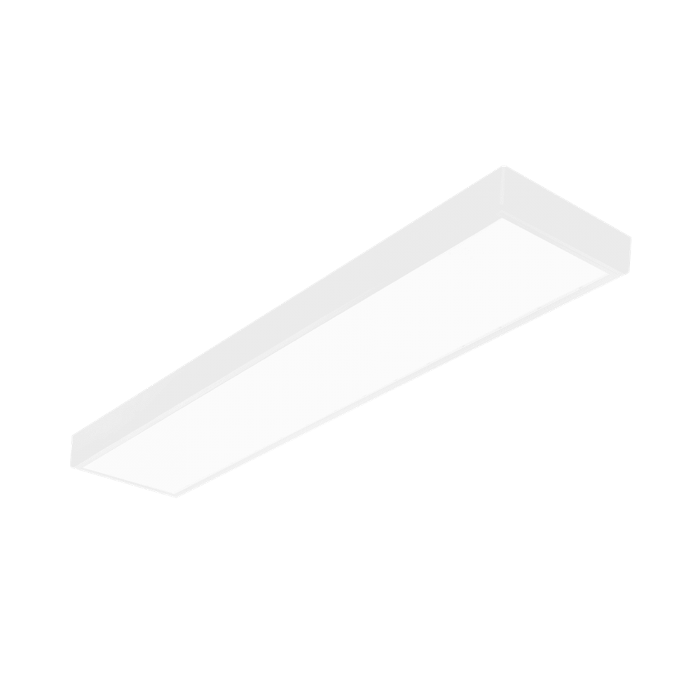

Product image 1: COMPACT LED EVO N 1200 5150lm PLX 840 (44W) DALI
Product image 1: COMPACT LED EVO N 1200 5150lm PLX 840 (44W) DALI

Product image 1: COMPACT LED EVO N 1200 5150lm PLX 840 (44W) DALI



IP
20

IK
07

628962 COMPACT LED EVO N 1200 5150lm PLX 840 (44W) DALI Compact LED luminaire designed for surface mounting or modular ceilings. Equipped with energy-saving LED modules and an evenly highlighted opal diffuser, providing low glare. Made of plastic. Assembly or electrical connection does not require removing the diffuser. Standard Deviation Colour Matching (SDCM): ≤3. COMPACT LED EVO N 1200x250 with nPRM nano-prismatic diffuser, can be used wherever low UGR is required.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 46.1 W 5150 lm 112 lm/W 4000 K 80
COMPACT LED EVO N 1200 5150lm PLX 840 (44W) DALI

COMPACT LED EVO N 1200 5150lm PLX 840 (44W) DALI

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1200 mm

Width: 250 mm

Height: 69 mm

Adjustability

Fixed

Design

Material impression: Matt

Colour of housing: White

Electric

System power: 46.1 W

Ballast: ECG

Appliance Class: II

Protection

IP: 20

IK: 07

Designation labels: CE

Other operating numbers

Ambient temperature range: -20...35°C

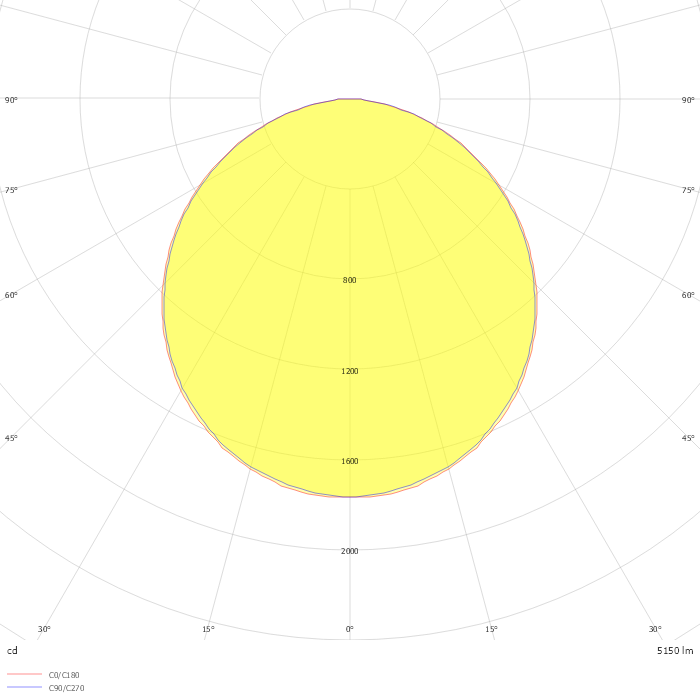

Photometric data

ZIP file

Download file
