Product data sheet

LEDDownlightRc-E COB R200-40W-4000K-NV

540001170100

Opple

Product image 1: LEDDownlightRc-E COB R200-40W-4000K-NV
Product image 1: LEDDownlightRc-E COB R200-40W-4000K-NV

Product image 1: LEDDownlightRc-E COB R200-40W-4000K-NV



IP
20

Housing: Aluminum; Mounting ring: white; Installation: recessed; Dimensions: Φ225×64mm; Ceiling cutouts: Φ200mm; Beam angle: 100°; Lamp(s): LED; Power: 40W; Efficacy：100Lm/w; Total luminous flux of luminaire: 4000lm; Power Factor: 0.9; Mains voltage: 220-240V/50-60Hz; Colour temperature: 4000K; Colour rendering: Ra80; UGR: / IP/IK Grade: IP20; Class of protection II; Control System: on/off; Service life: 30,000h at 70% luminous flux;

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 40 W 4000 lm 100 lm/W 4000 K 80
LEDDownlightRc-E COB R200-40W-4000K-NV

LEDDownlightRc-E COB R200-40W-4000K-NV

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 225 mm

Width: 225 mm

Height: 62 mm

Adjustability

Fixed

Electric

System power: 40 W

Protection

IP: 20

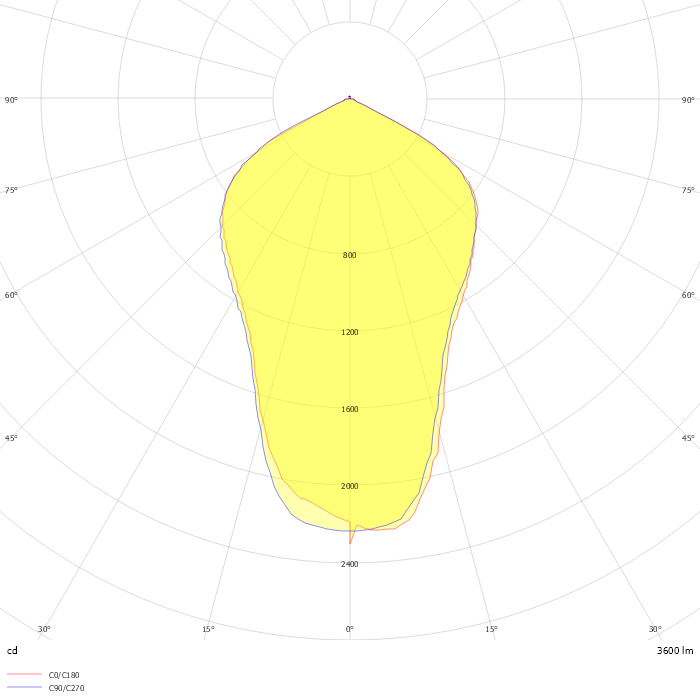

Photometric data

ZIP file

Download file
