Product data sheet

GuideLed SL 13851 1-8h/D CGLine+ (set to 3 h operation)

40071353280

Eaton Emergency Lighting

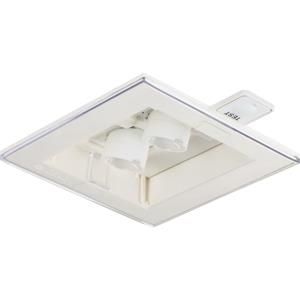

Product image 1: GuideLed SL 13851 1-8h/D CGLine+ (set to 3 h operation)
Product image 1: GuideLed SL 13851 1-8h/D CGLine+ (set to 3 h operation)

Product image 1: GuideLed SL 13851 1-8h/D CGLine+ (set to 3 h operation)



IP
41

IK
03

• LED self-contained safety luminaire with automatic test for reduced inspection effort • Universal use for maintained and non-maintained operation and for 1 h, 3 h or 8 h operation • For autonomous installation or connection to the CGLine+ monitoring system • Environmentally-friendly due to modern lithium ion technology • Low operating costs via low connected load • Minimum maintenance effort via high LED service life (50,000 hours) • Special asymmetric optics for illumination of 5 lx vertically for first aid stations, fire fighting equipment and safety equipment acc. to EN 1838 • Simple fault analysis and status display via bicolor LED and testing button • 1 minute switch-back delay after mains return • Blocking function prevents unintended discharge during idle operating times (only with CGLine+ WEB-Controller)

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 6.7 W 155 lm 23 lm/W 6500 K 70
GuideLed SL 13851 1-8h/D CGLine+ (set to 3 h operation)

GuideLed SL 13851 1-8h/D CGLine+ (set to 3 h operation)

Light output 1 (integrated, emergency)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 100 mm

Width: 100 mm

Height: 42 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 6.7 W

Suitable for feed-through wiring

Appliance Class: I

Information regarding emergency functions

Emergency lighting only

Emergency power supply: Single battery 1 h, Single battery 3 h, Single battery 8 h

Emergency sign: N/A

Protection

IP: 41

IK: 03

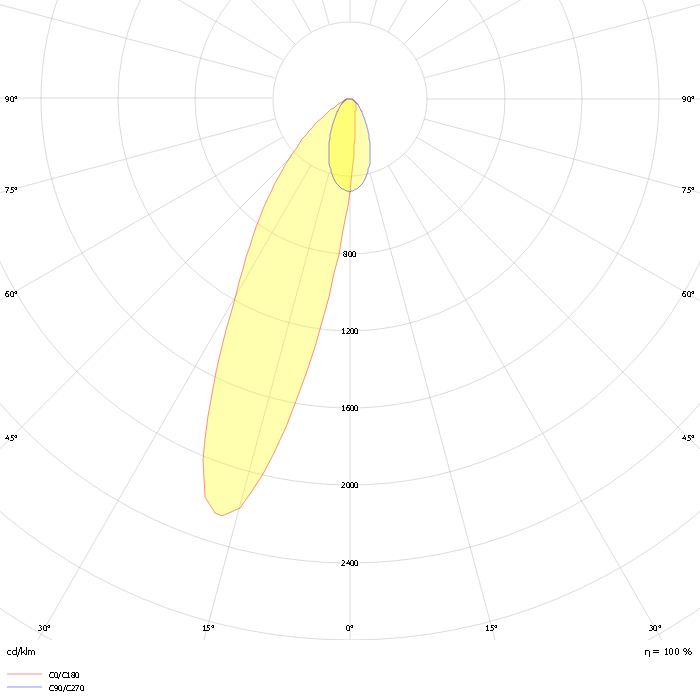

Photometric data

ZIP file
