Product data sheet

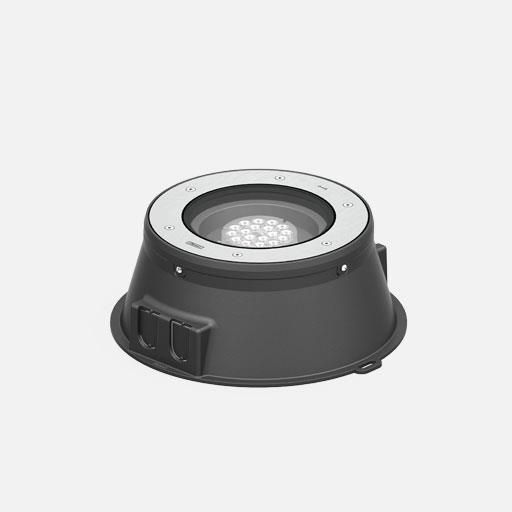

KIOS 7 In-ground luminaires
KI-60578-E-40
LIGMAN
- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour RGBW 30,40 - Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance - Stainless steel frame - Single cable entry - Through wiring on request - Stainless steel fasteners in grade 316 - High-efficiency PMMA lens - Durable silicone rubber gasket - Clear or frosted toughened glass 15mm - Integral control gear - Recessing box in high density polyethylene is included - Suitable for drive-over with a maximum load of 2000 kg - Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h - Load is transferred by the housing to the foundation - The distance between the floodlight and the illuminated surface should be at least 05 m
- Light output 1 (integrated)
- Light output 2 (integrated)
- Light output 3 (integrated)
- Light output 4 (integrated)
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.1 W | 463 lm | 51 lm/W | 4000 K | 80 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.1 W | 69 lm | 8 lm/W | 0 K | -50 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.4 W | 462 lm | 49 lm/W | 0 K | -18 |
Mounting mode
Standing / Bollard, Floor recessed
Shape and measurements
Height: 145 mm
Diameter: 286 mm
Weight: 7 kg
Adjustability
Fixed
Design
Colour of housing: Black, White, Silver gray
Glare protection
Glare protection: UGR < 19
Electric
System power: 34.4 W
Ballast: ECG
Controller: Dimmable 1..10V, DALI
Appliance Class: I
Protection
IP: 67
IK: 10
Surface temperature: 40°C

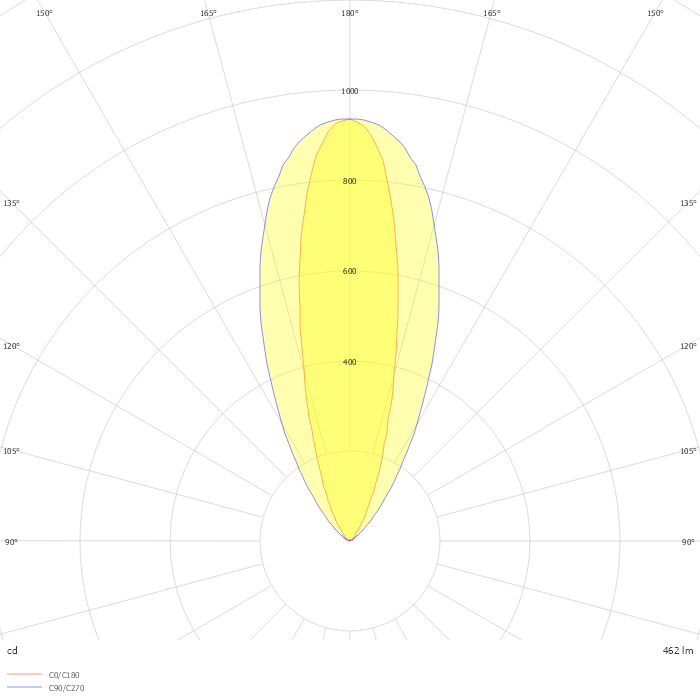

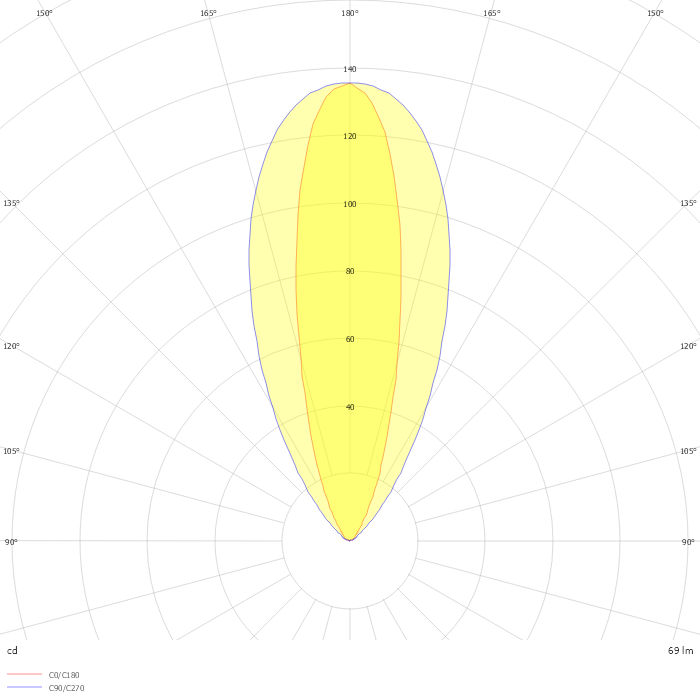

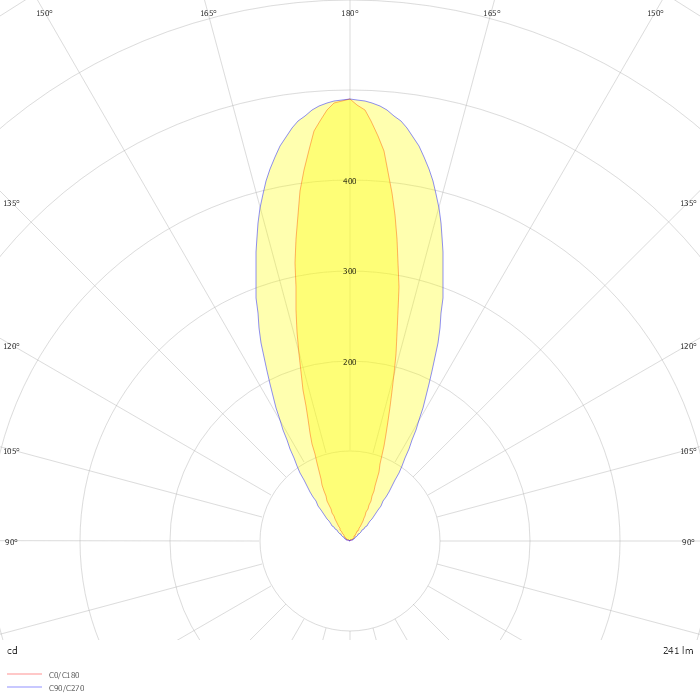

Photometric data
ZIP file
