Product data sheet

LED panel backlit 60×60, built-in, white, 40W, neutral white

ZR7612N

EMOS

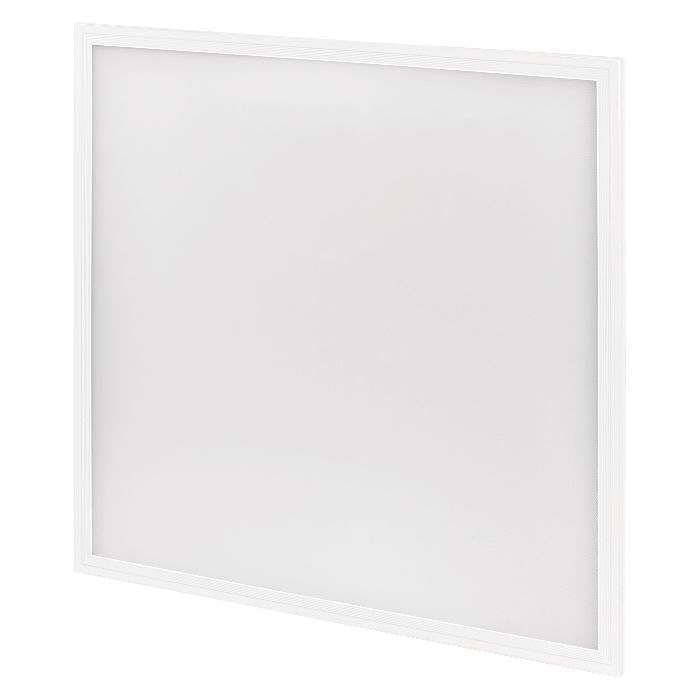

Product image 1: LED panel backlit 60×60, built-in, white, 40W, neutral white
Product image 1: LED panel backlit 60×60, built-in, white, 40W, neutral white

Product image 1: LED panel backlit 60×60, built-in, white, 40W, neutral white



IP
20

IK
02

IP rating: IP20 body colour: white luminous flux: 4 000 lm replacement of incandescent bulb: 4× 18 W CFL dimming function: no color temperature: 4 000 K motion sensor: no line: PROFI voltage: 220–240 V beam angle: 120° mounting hole: no source of light: LED UGR<: 22 body material: steel plate lifetime: 30 000 hours sensor detection range: no sensor color rendering index (CRI): Ra > 80 material of the diffuser: plastic (PS) output current from power source: not stated frequency : 50/60 Hz current: 180 mA diffuser type: milky warranty period: 3 years dimensions: 595 × 595 × 30 mm packaging: 1 pc, box energy efficiency class (from 1.9.2021): not stated

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 40 W 3999 lm 100 lm/W 4000 K 80
LED panel backlit 60×60, built-in, white, 40W, neutral white

LED panel backlit 60×60, built-in, white, 40W, neutral white

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 595 mm

Width: 595 mm

Height: 30 mm

Adjustability

Fixed

Electric

System power: 40 W

Appliance Class: III

Protection

IP: 20

IK: 02

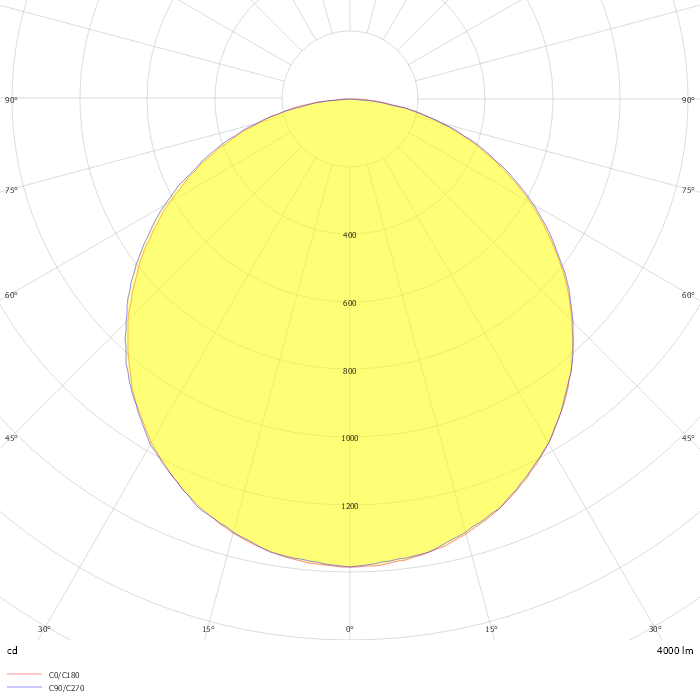

Photometric data

ZIP file
