Product data sheet

SLD25 Ledstrip 1000lm/m 2700K 24V GE 0.1m

93440005+93000540

Modular

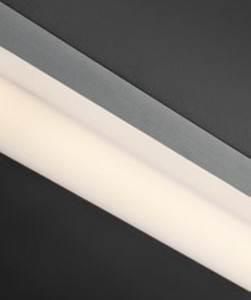

Product image 1: SLD25 Ledstrip 1000lm/m 2700K 24V GE 0.1m
Product image 1: SLD25 Ledstrip 1000lm/m 2700K 24V GE 0.1m

Product image 1: SLD25 Ledstrip 1000lm/m 2700K 24V GE 0.1m



IP
20

IK
01

Light lines make fantastic architectural features. At just 26.5 mm wide, SLD25 is our narrowest U profile. SLD25, available with a Plexiglass diffuser on the outside, nonetheless guarantees a light-filling effect in any room. Only available with LEDs. Suitable for surface mounting on the wall or ceiling; also works well as a suspended fitting. Light source: LED strip lights, dimmable

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 1.08 W 104 lm 87 lm/W 2700 K 90
SLD25 Ledstrip 1000lm/m 2700K 24V GE 0.1m

SLD25 Ledstrip 1000lm/m 2700K 24V GE 0.1m

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 100 mm

Width: 26 mm

Height: 30 mm

Adjustability

Fixed

Design

Material impression: Matt

Colour of housing: White

Glare protection

Glare protection: UGR < 19

Electric

System power: 1.08 W

Ballast: ECG

Appliance Class: I

Protection

IP: 20

IK: 01

Designation labels: CE

Other operating numbers

Ambient temperature range: 0...30°C

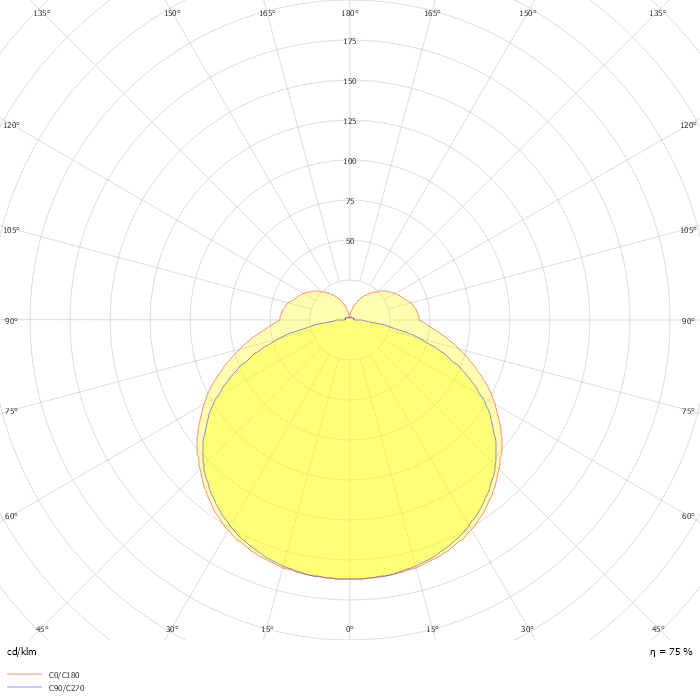

Photometric data

ZIP file

Download file
