Product data sheet

LUGLINE LB LED 64W 7100lm 4000K white STANDARD

300081.00004

LUG

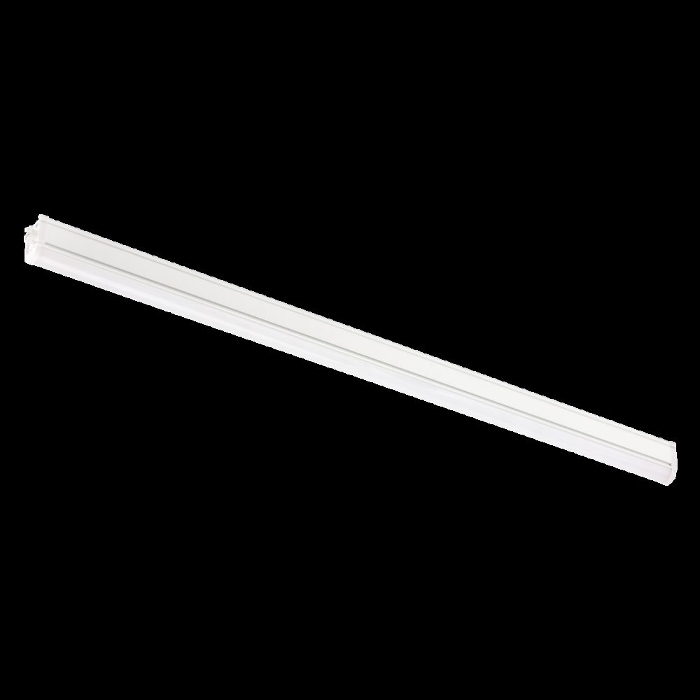

Product image 1: LUGLINE LB LED 64W 7100lm 4000K white STANDARD
Product image 1: LUGLINE LB LED 64W 7100lm 4000K white STANDARD

Product image 1: LUGLINE LB LED 64W 7100lm 4000K white STANDARD



IP
20

IK
07

Modern continuous line luminaire featuring LED light sources. Mounting: suspended, on wire suspension (on request), surface mounted Body: aluminum profile Power: 220-240V 50/60Hz Lifetime (L80B10): 50 000 h Additional information: through wiring Additional equipment: included mounting bracket (2 pc. for 1m luminaire, 2 pcs. for 2m luminaire) Warranty: 3 years Application: shopping centers, supermarkets

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 64 W 7100 lm 111 lm/W 4000 K 80
LUGLINE LB LED 64W 7100lm 4000K white STANDARD

LUGLINE LB LED 64W 7100lm 4000K white STANDARD

Light output 1 (integrated)

LED

Mounting mode

Pendant, Ceiling mounted

Shape and measurements

Length: 2014 mm

Width: 40000 mm

Height: 60000 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 64 W

Appliance Class: I

Protection

IP: 20

IK: 07

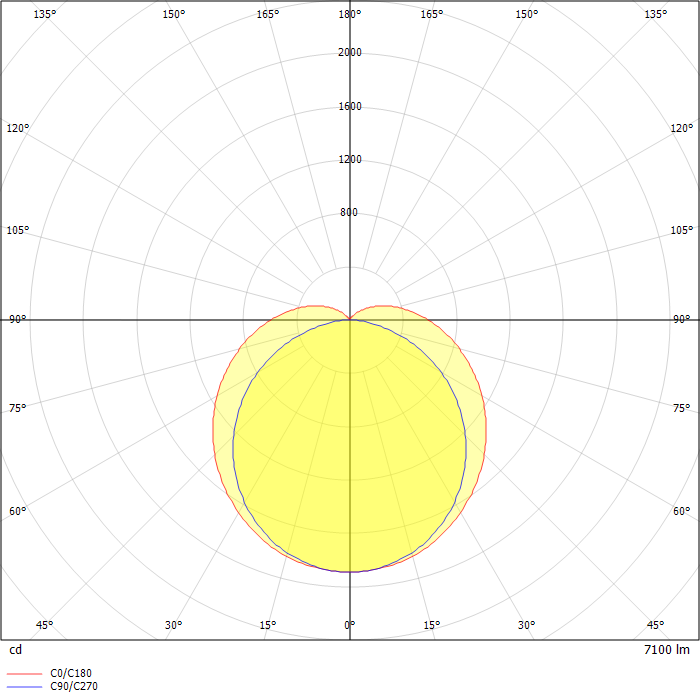

Photometric data

ZIP file

Download file
