Product data sheet

LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

M485V481LED1RGB-A

Megalite

Product image 1: LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam
Product image 1: LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

Product image 1: LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam



IP
65

LEDILINE RGB LED surface mount luminaire is Megalite state of the art design suitable for architectural and façade lighting used in outdoor application such as bridges, building facades, pillars and etc. Specially designed lenses results in wide or narrow light distribution. Sturdy body and high ingress protection IP65 are among the highlights of LEDILINE

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 8 W 102 lm 13 lm/W 0 K -50
LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 8 W 342 lm 43 lm/W 7247 K -18
LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

Light output 2 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 7 W 156 lm 22 lm/W 0 K -29
LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

LEDiLINE 600 Lm 23W High power LED Wall-washer Luminaire ; RGB ; Oval Beam

Light output 3 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 60 mm

Width: 485 mm

Height: 80 mm

Adjustability

Fixed

Electric

System power: 23 W

Protection

IP: 65

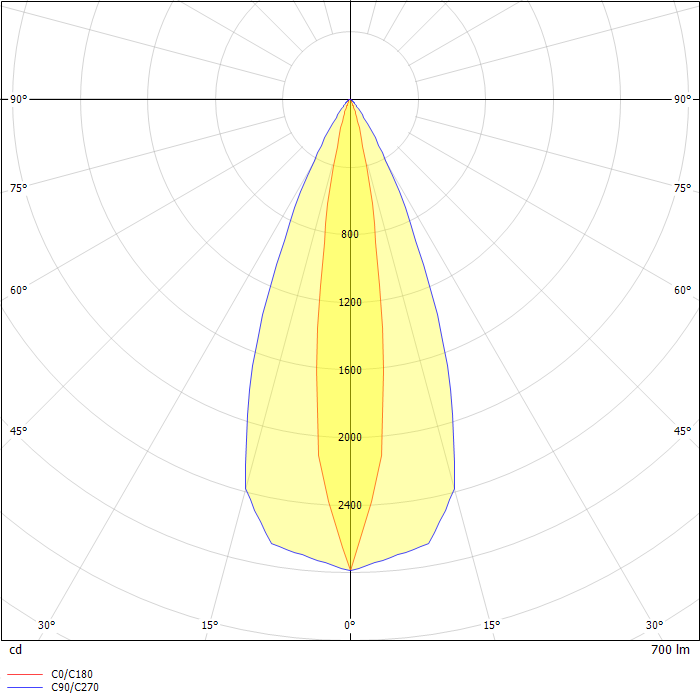

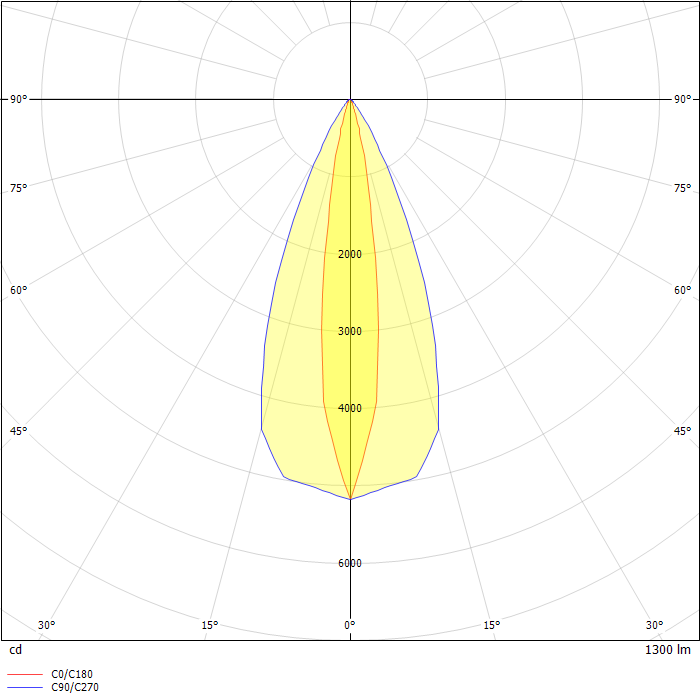

Photometric data

ZIP file

Download file
