80W, 4000K, IP23 Grid protection optional. Range of uses: Commercial and industrial use. Mounting: Surface mounting or suspension. Optional distance between fixing points at the top of the fitting. Connection: Terminal block 5x2,5mm², one on each end. Cable inlet through 1 ø19 mm hole with membrane nipple at the top of the fitting and 2 ø19 mm holes with membrane nipples, one on each end. Supplied with link connection cable 5x2,5 mm². Description: Body made of galvanized steel plate and semi-bright aluminium reflector. Weight: 0,0 kg Dims LxWxH mm: 1635x50x50 Protection class: IP 23 Optional: Protection Kit when mounting in sports halls
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 81 W | 13764 lm | 168 lm/W | 4000 K | 84 |
1 x LED | 81.85 W | 13765 lm | 168 lm/W | 4000 K | 84 |
Mounting mode
Ceiling mounted, Wall mounted
Shape and measurements
Length: 1550 mm
Width: 76 mm
Height: 50 mm
Weight: 2.4 kg
Adjustability
Fixed
Electric
System power: 81.85-81.85 W
Appliance Class: I
Protection
IP: 23

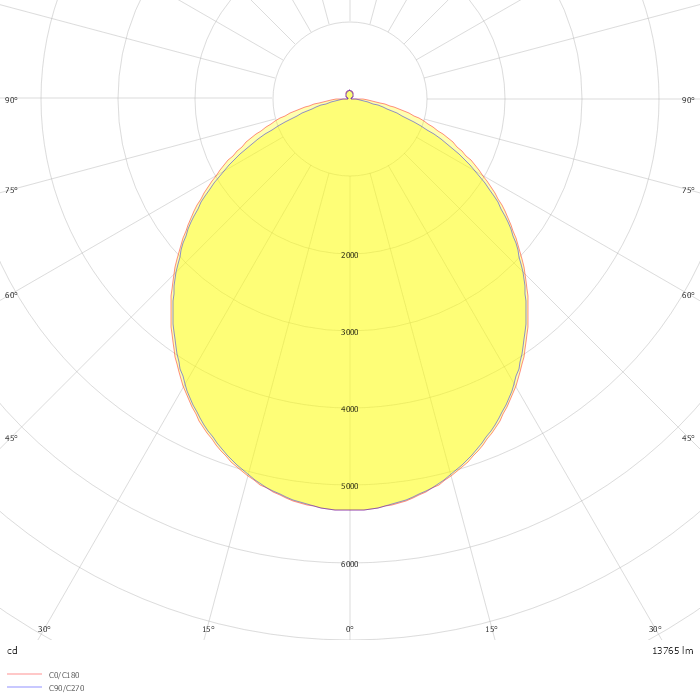

Photometric data
ZIP file
