Product data sheet

LedgeCircle Opal D300 10W 4000K Radar MinMaxOff

120853

DEFA Lighting

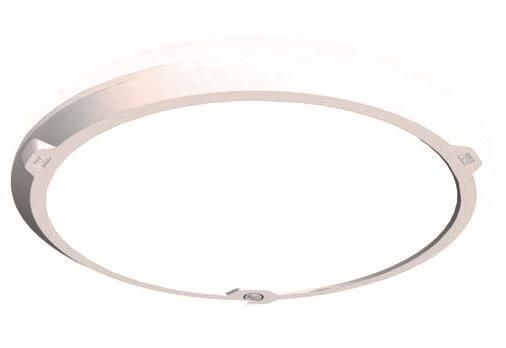

Product image 1: LedgeCircle Opal D300 10W 4000K Radar MinMaxOff
Product image 1: LedgeCircle Opal D300 10W 4000K Radar MinMaxOff

Product image 1: LedgeCircle Opal D300 10W 4000K Radar MinMaxOff



IP
44

IK
06

Modern wall and ceiling fitting based upon newly developed edgelit technology, which in spite of the very small sizes contains a variety of alternative control systems. High quality, IP-class and top rated light distribution in combination with a discreet design makes the fitting ideal both in official and private premises.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 10 W 1122 lm 112 lm/W 4000 K 80
LedgeCircle Opal D300 10W 4000K Radar MinMaxOff

LedgeCircle Opal D300 10W 4000K Radar MinMaxOff

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 300 mm

Width: 300 mm

Height: 35 mm

Weight: 1.4 kg

Adjustability

Fixed

Electric

System power: 10 W

Appliance Class: II

Protection

IP: 44

IK: 06

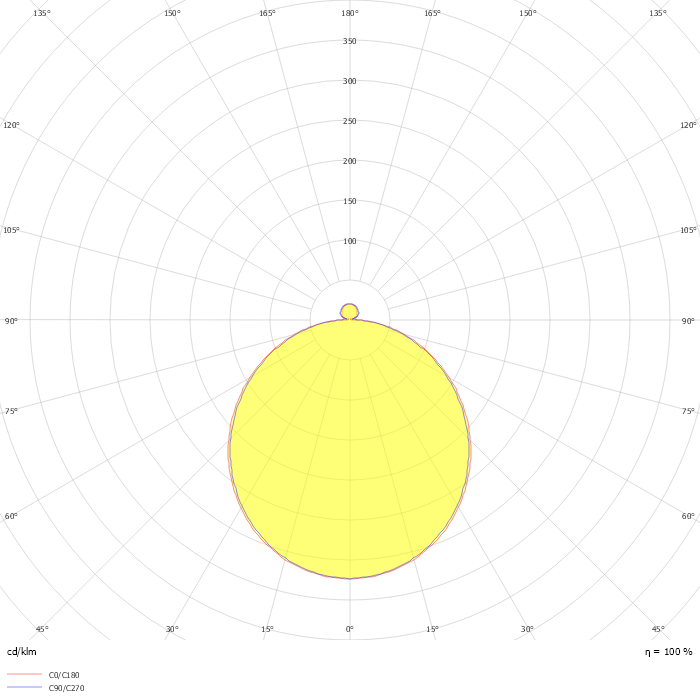

Photometric data

ZIP file

Download file
