Product data sheet

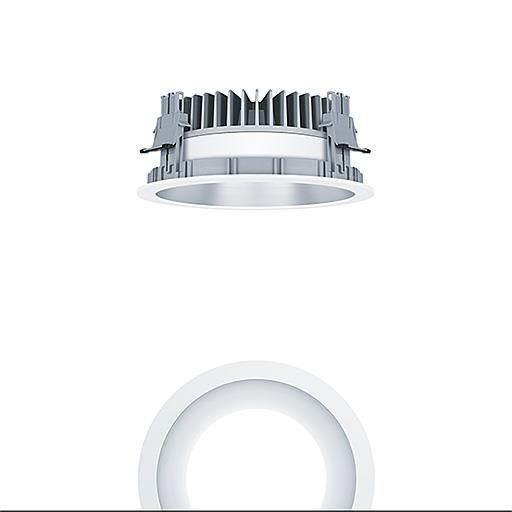

PANOS EVO R200L 22W LED840 SM WH

60815876

Zumtobel

LED ceiling-recessed luminaire (pre-assembled luminaire), designed for use where space is limited in ceiling: recess depth <100mm; "stableWhite" LED luminaire, with symmetric wide-beam light distribution with maximum luminaire efficiency and optimum photometric properties; lamp(s): 22 W LED840; Colour rendering Ra > 80, colour temperature 4000 K (neutral white); Chromaticity tolerance (initial MacAdam): 3; Luminaire luminous flux: 2430 lm, Luminaire efficacy: 110 lm/W; service life: 50000h at 85% luminous flux; includes separate control unit ; high-quality reflector unit fixed to modular LED lighting chamber by twist-and-lock mechanism; high-efficiency LED lighting chamber is integrated in optimised, passive thermal management system of diecast aluminium; reflector: smooth, matt aluminized finish; reflector/trim made of high-quality, UV-resistant polycarbonate; cover ring white; mounting ring of Glass fibre-reinforced polycarbonate (PC), grey; luminaire unit can be fitted quickly without tools using twist-and-lock mechanism; IP44_IP20; luminaire wired with halogen-free leads; power connection: 3-pole connector terminal, loop-in/loop-out possible; mains voltage: 220-240V / 0/50/60Hz, for use with 220V DC central battery; tool-free quick installation using antislip spring clips in ceilings of thickness 1-40mm; ceiling cutout: 200mm, recess depth: 89mm; weight: 1.27 kg; Note: To achieve EN12464 compliance in office applications (UGR<19, aluminized reflector type), please order an additional antiglare ring

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 22 W 2700 lm 110 lm/W 3000 K 80
PANOS EVO R200L 22W LED840 SM WH

PANOS EVO R200L 22W LED840 SM WH

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 84 mm

Diameter: 218 mm

Weight: 1.3 kg

Design

Material impression: Aluminum

Colour of housing: White

Electric

System power: 22 W

Voltage: 220-240 V AC

Appliance Class: II

Protection

IP: 20

Designation labels: CE, ENEC

Photometric data

ZIP file
