Product data sheet

THOR B S 10L25 730 R/S CL2 MPL

96264235

Thorn Lighting

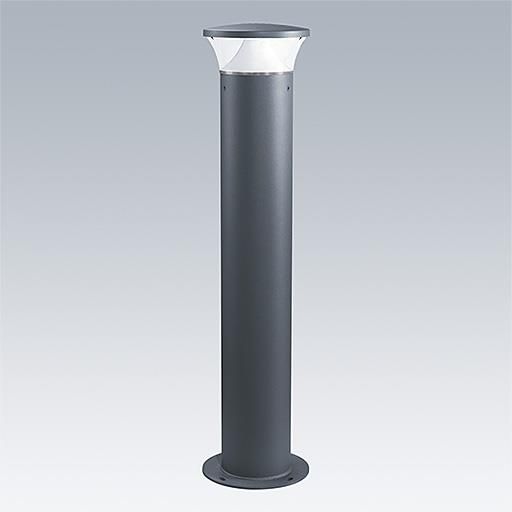

Product image 1: THOR B S 10L25 730 R/S CL2 MPL
Product image 1: THOR B S 10L25 730 R/S CL2 MPL

Product image 1: THOR B S 10L25 730 R/S CL2 MPL



IP
66

IK
10

An elegant vandal resistant radially symmetric slim bollard with high performance optic. For Electronic, fixed output control gear. IP66 Electrical Class ll. Column and Base: aluminium (EW AW 6060). Canopy: die-cast aluminium (EN AC 47100). Diffuser: Clear anti UV polycarbonate. Gear Box: polycarbonate. Canopy and Column colour: powder coated dark grey (close to RAL7043). Ready to install prewired luminaire. Connection box required, to be ordered separately. Complete with 3000K LED Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 150mm Dimensions: 160 x 160 x 1017 mm Total power: 11 W Weight: 7.66 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 11 W 793 lm 72 lm/W 3000 K 70
THOR B S 10L25 730 R/S CL2 MPL

THOR B S 10L25 730 R/S CL2 MPL

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Height: 1017 mm

Diameter: 160 mm

Weight: 7.7 kg

Design

Material impression: Aluminum

Electric

System power: 11 W

Voltage: 230 V AC

Appliance Class: II

Protection

IP: 66

IK: 10

Designation labels: CE

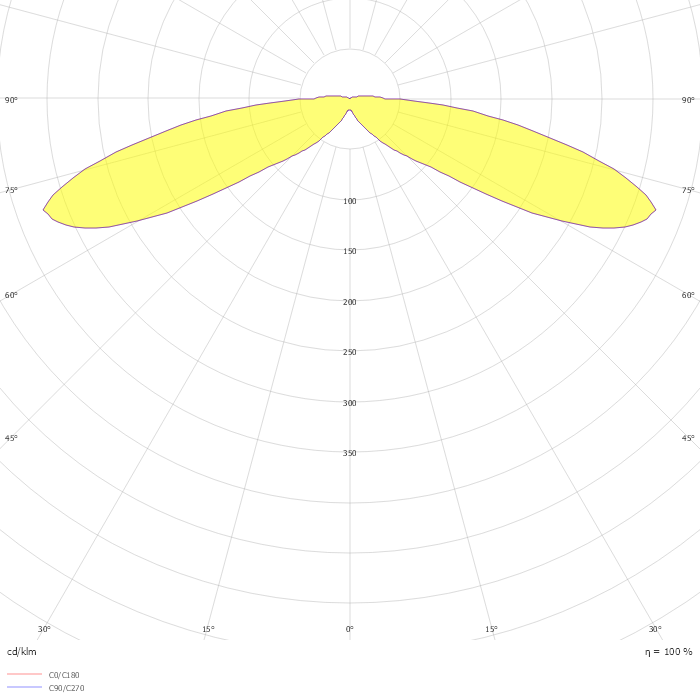

Photometric data

ZIP file

Download file
