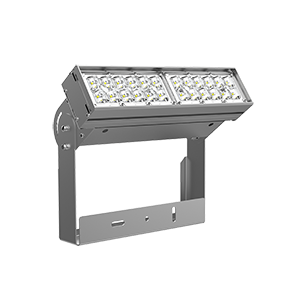

Medium-power Industrial luminaire with wide range of wattage and optics. Housing: heatsink made of extruded aluminum, assembly and mounting elements made of steel. Secondary optics - PMMA/PC. Installation: Surface-mounted using an adjustable bracket. Angle of rotation: 0° to 180°, step of 7,5°. The luminaire has a wire for connecting to the mains. Wire length 0.3 meters. Application: Outdoor areas. Industrial facilities. Warehouses. Input voltage (AC, 50Hz), V: 100...305 AC frequency, Hz: 50 Input voltage (DC), V: 127...300 Flicker, %: 5 Climatic modification and category of placement: УХЛ1 Protection class: I Ingress protection (IP): IP65 Impact resistance: IK01 Power factor: 0,95 https://www.varton.ru/products/promyshlennoe-osveshchenie/olymp-2-0/olymp-2-0-50-vt/svetodiodnyy-svetilnik-varton-promyshlennyy-olymp-2-0-50-vt-4000-k-klass-zashchity-ip65-ugol-90-grad_1/
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 50 W | 7400 lm | 148 lm/W | 4000 K | 70 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 360 mm
Width: 85 mm
Height: 165 mm
Adjustability
Fixed
Electric
System power: 50 W
Protection
IP: 65
IK: 01

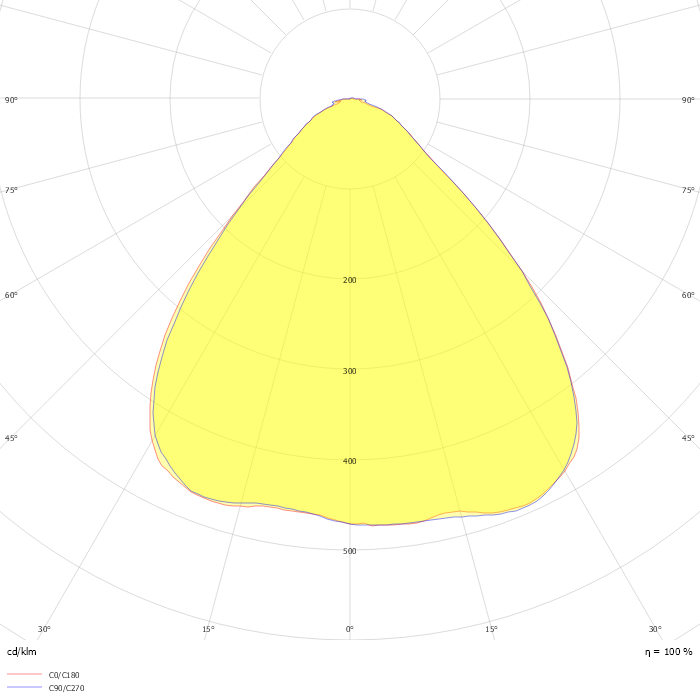

Photometric data
ZIP file
