Product data sheet

NLED4912M A12 24W W100 5700K 明装线型灯盘

70097859

NVC

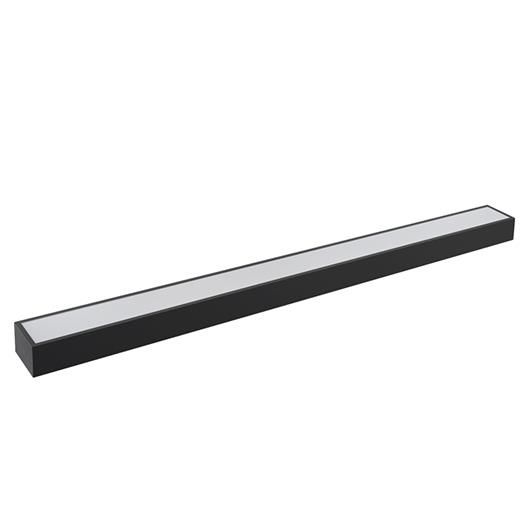

Product image 1: NLED4912M A12 24W W100 5700K 明装线型灯盘
Product image 1: NLED4912M A12 24W W100 5700K 明装线型灯盘

Product image 1: NLED4912M A12 24W W100 5700K 明装线型灯盘



IP
20

IK
05

产品描述： 光源类型：ETI LED SMD 驱动电源：内置恒流电源 灯体材质：冷轧板 表面处理：烤漆 灯体颜色：04平光黑 安装方式：吸顶/吊线/吊杆 系列可选： 灯体颜色：99半光白/04平光黑/L5闪银灰 截面规格：W60/W80/W100/W120/W150/W200/W250 色温 ：4000K/5700K 显指 ：Ra80 功率 ：18W/24W/36W/40W 功率因数PF：0.85（18W/24W）,0.95（36W/40W） 光束角 ：120° 光通量 ：1100lm（18W） 1600/1450lm（24W） 2200/2300lm（36W） 2800/3000lm（40W） 更新说明： 暂无更新，敬请期待。 更多信息： 暂无链接，敬请期待。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 22.3 W 1450 lm 65 lm/W 5700 K 80
NLED4912M A12 24W W100 5700K 明装线型灯盘

NLED4912M A12 24W W100 5700K 明装线型灯盘

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 98 mm

Width: 1198 mm

Height: 60 mm

Weight: 2.45 kg

Adjustability

Fixed, Height adjustable

Electric

System power: 22.3 W

Appliance Class: I

Protection

IP: 20

IK: 05

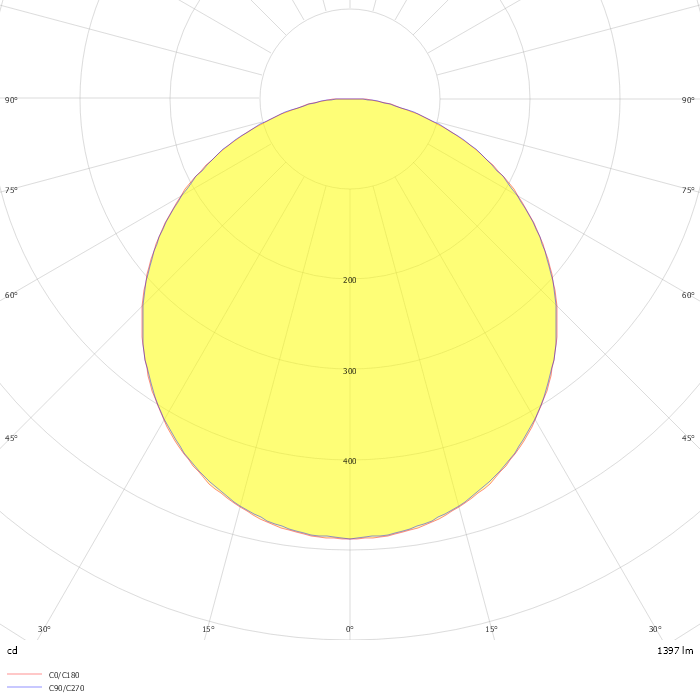

Photometric data

ZIP file

Download file
