Product data sheet

LGS0109101-Jia-Grid-1-9W-4000k-15°

541002023900

Opple

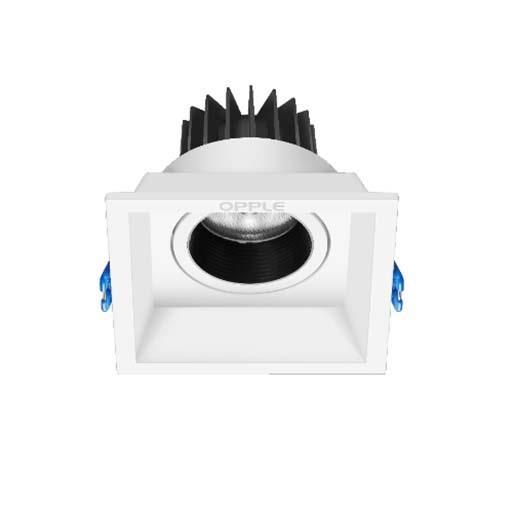

Product image 1: LGS0109101-Jia-Grid-1-9W-4000k-15°
Product image 1: LGS0109101-Jia-Grid-1-9W-4000k-15°

Product image 1: LGS0109101-Jia-Grid-1-9W-4000k-15°



IP
20

Housing:Aluminium; Mounting ring: white; Installation: recessed; Dimensions:105*105*75.5; Ceiling cutouts:Φ95*95; Power:9W; Power factor:0.9; Efficacy：65Lm/w Colour temperature:4000K; Colour rendering:RA90; Beam angle:15°; Total luminous flux of luminaire:585Lm; Service life:30,000h; Degree of protection:IP20;

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 9 W 585 lm 65 lm/W 4000 K 90
LGS0109101-Jia-Grid-1-9W-4000k-15°

LGS0109101-Jia-Grid-1-9W-4000k-15°

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 105 mm

Width: 105 mm

Height: 76 mm

Adjustability

Fixed

Electric

System power: 9 W

Protection

IP: 20

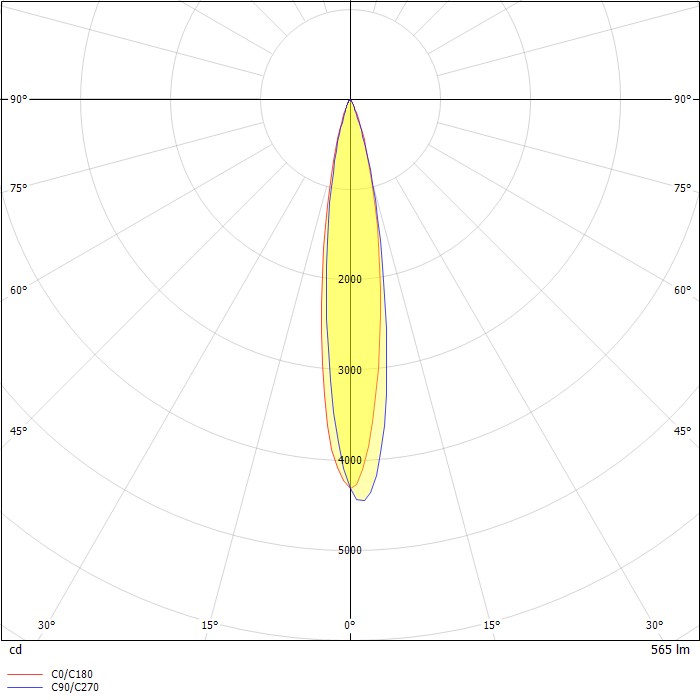

Photometric data

ZIP file

Download file
