Product data sheet

Play Deco Asymmetrical Round Fixed

AG25-13X9M2DSWR

LedsC4

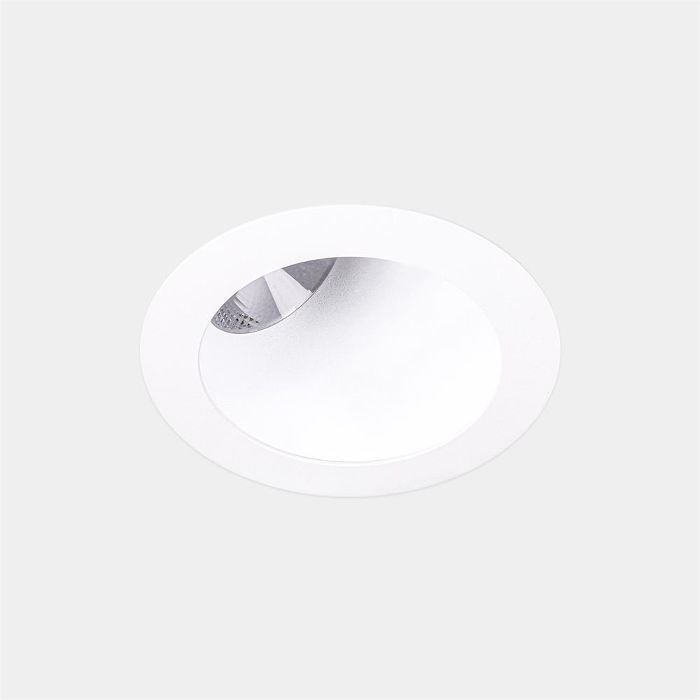

LedsC4 Play Deco Asymmetrical Round Fixed AG25-13X9M2DSWR Downlight For side lighting and downlighting. Structure material: Polycarbonate, Aluminium. Structure finish: White/white. Diffuser material: Methacrylate. Diffuser finish: Transparent. Warranty: 5 Years. Product net weight (Kg): 0.59 Product width or diameter (mm): 90 Product height (mm): 110 Ø of the hole for recessing (mm): 80 Permitted ceiling thickness: 0-25 Class 2. Luminaire not suitable for coating with insulation materials. Glow wire test: 850. IP: IP54. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Driver brand: VOSSLOH-SCHWABE. Maximum power of light source: 11.9W. Colour temperature: 4000K. Colour rendering index: 90. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 5.4. Photobiological risk: RG2. % de Flickering: <5%. Real flux (lm): 1434. Real lm/W: 100. Voltage / frequency range: 100-240/50-60Hz. Voltage: 36. Equipment included: Yes. Total power: 14.3. Power factor: 0.80. Dimmable equipment included: DALI-2/PUSH.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 14.3 W 1303 lm 91 lm/W 4000 K 90
Play Deco Asymmetrical Round Fixed

Play Deco Asymmetrical Round Fixed

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 90 mm

Width: 90 mm

Height: 2 mm

Adjustability

Fixed

Electric

System power: 14.3 W

Appliance Class: II

Protection

IP: 54

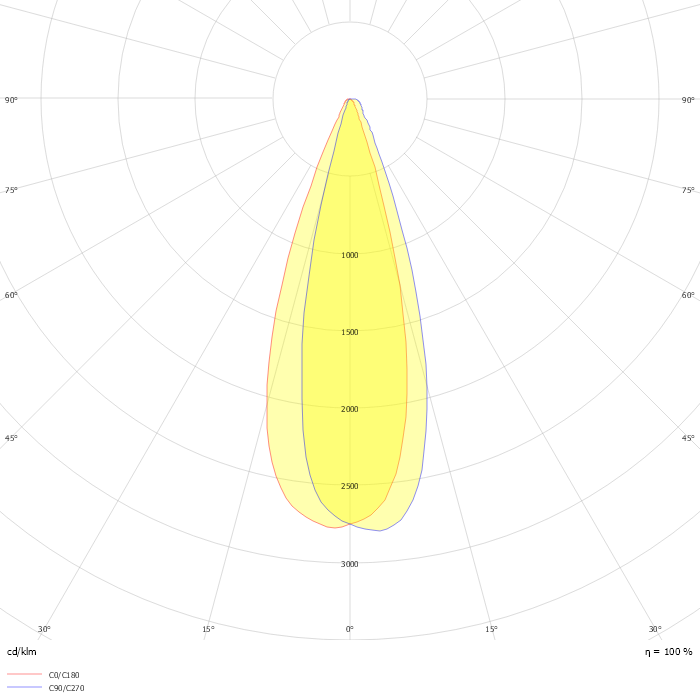

Photometric data

ZIP file
