Product data sheet

RACER MINI 826 12000 757 MBA

Glamox

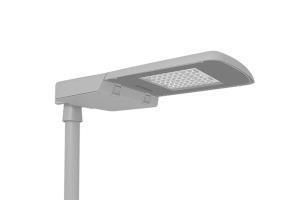

Product image 1: RACER MINI 826 12000 757 MBA
Product image 1: RACER MINI 826 12000 757 MBA

Product image 1: RACER MINI 826 12000 757 MBA



IP
66

IK
08

Light source: LED Lumen out: 12000 CRI: 70 Colour temperature: 5700 Total effect: 87 Lumen per watt: 138 Optic: MBA Driver: HF Main body material: Aluminium/Steel IP class: 66 IK class: 8

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 87 W 12000 lm 138 lm/W 5700 K 70
RACER MINI 826 12000 757 MBA

RACER MINI 826 12000 757 MBA

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 345 mm

Width: 826 mm

Height: 107 mm

Adjustability

Fixed

Electric

System power: 87 W

Appliance Class: II

Protection

IP: 66

IK: 08

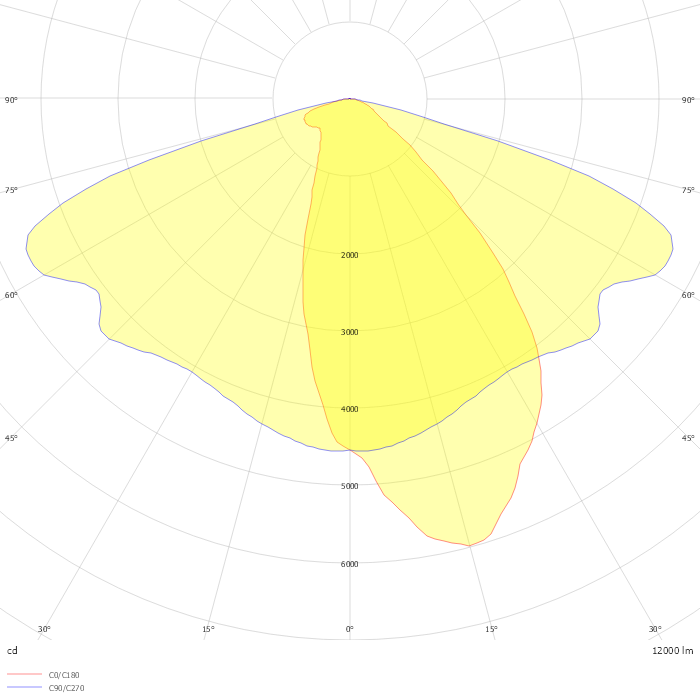

Photometric data

ZIP file

Download file
