Product data sheet

Circular Outward ø1200 Surface

CF4B-00X9AZRU14

LedsC4

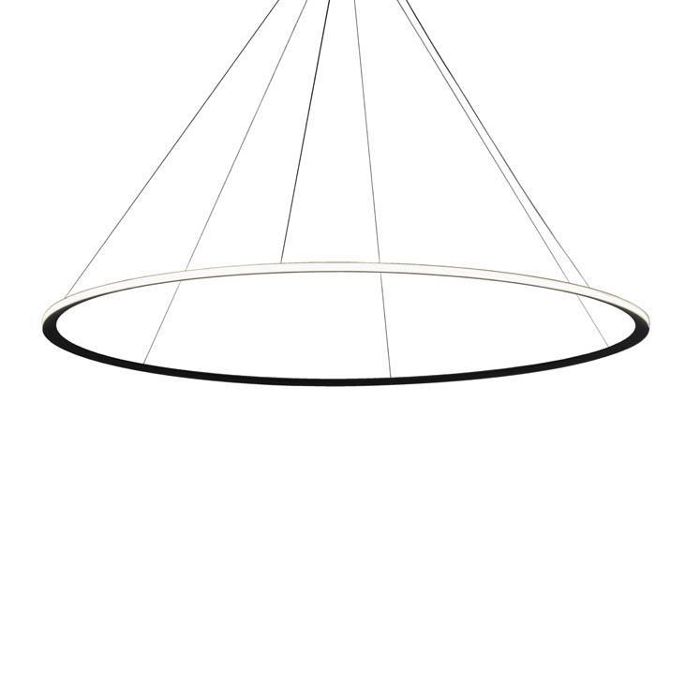

Product image 1: Circular Outward ø1200 Surface
Product image 1: Circular Outward ø1200 Surface

Product image 1: Circular Outward ø1200 Surface



IP
20

LedsC4 Circular Outward ø1200 Surface CF4B-00X9AZRU14V1 Pendant for indoor use. For sideways lighting. Structure finish: White. Diffuser material: Polycarbonate. Diffuser finish: Opal. Warranty: 5 Years. Product net weight (Kg): 6 Product width or diameter (mm): 1177 Product height (mm): 3000 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. Driver brand: MEANWELL. Maximum power of light source: 67.4W. Colour temperature: 4000K. Colour rendering index: 90. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 9.0. Photobiological risk: RG1. Real flux (lm): 6116. Real lm/W: 85. Voltage / frequency range: 90-305/50-60Hz. Voltage: 2,8. Equipment included: Yes. Total power: 72. Power factor: 0.90. Dimmable equipment included: 0-10V.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 72 W 6116 lm 85 lm/W 4000 K 90
Circular Outward ø1200 Surface

Circular Outward ø1200 Surface

Light output 1

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 1200 mm

Width: 1200 mm

Height: 30 mm

Adjustability

Fixed

Electric

System power: 72 W

Appliance Class: I

Protection

IP: 20

Photometric data

ZIP file

Download file
