Product data sheet

NLED4323J 36W 600×600 5700K 空气洁净灯盘

70200101

NVC

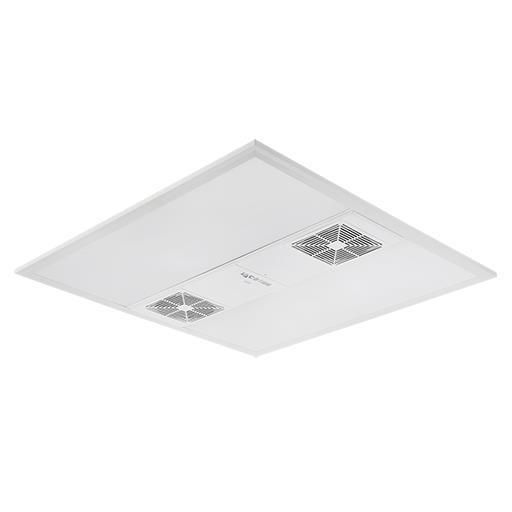

Product image 1: NLED4323J 36W 600×600 5700K 空气洁净灯盘
Product image 1: NLED4323J 36W 600×600 5700K 空气洁净灯盘

Product image 1: NLED4323J 36W 600×600 5700K 空气洁净灯盘



IP
20

IK
04

产品描述： 光源类型：SMALITE LED SMD 2835 驱动电源：外置隔离恒流电源 灯体材质：冷轧板+AL6063 灯体颜色：99半光白 系列可选 ： 灯具规格 ：NLED432 598×598（mm） NLED432J 300×300/600，600×600（mm） 安装方式 ：平放式/集成式 出光方式 ：直下出光 工作模式 ：空气过滤+UVC杀菌 色温 ：5700K 显指 ：Ra80 功率 ：13/21/36W 功率因数PF ：0.5/0.9 光通量 ：780/1400/2503lm 更新说明： 暂无更新，敬请期待。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 35.43 W 2500 lm 71 lm/W 5700 K 80
NLED4323J 36W 600×600 5700K 空气洁净灯盘

NLED4323J 36W 600×600 5700K 空气洁净灯盘

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 600 mm

Width: 600 mm

Height: 45 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 35.43 W

Appliance Class: II

Protection

IP: 20

IK: 04

Designation labels: CCC, ENEC, GS

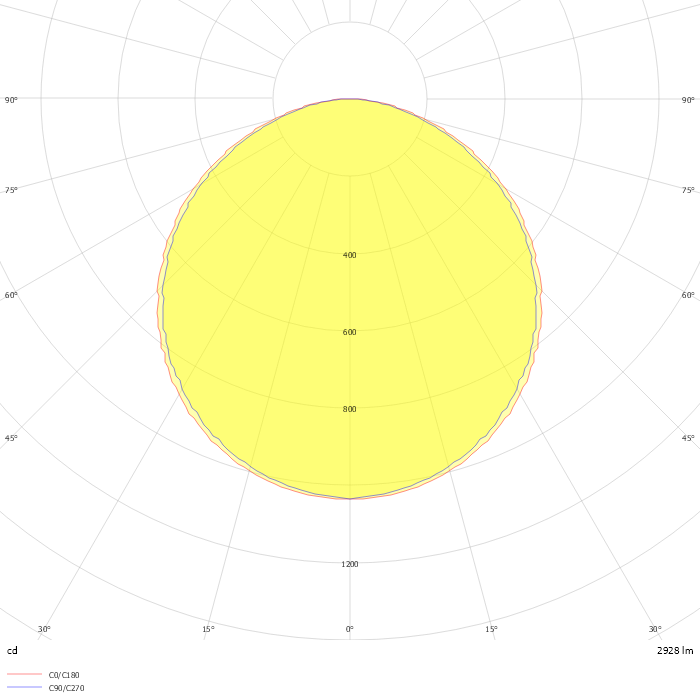

Photometric data

ZIP file

Download file
