Housing: thermoplastic material, shatterproof, UV stabilised, RAL7045 grey colour. Optics: anodised and polished 99.85 aluminium. Diffuser: in anti-glare matt polycarbonate, shatterproof and V2 self-extinguishing, UV stablised, anti-yellowing, externally smooth and dustproof. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. They have a degree of protection according to the EN60529 standard. Equipment: - complete with fixing plate. - EPDM foam bowl gasket. - external screws in galvanised stainless steel with black OR. Mounting: wall or pole (Ø60mm connector). Easy installation: equipped for wall mount.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 20 W | 2010 lm | 100 lm/W | 4000 K | 80 |
Mounting mode
Wall mounted
Shape and measurements
Length: 240 mm
Width: 230 mm
Height: 140 mm
Adjustability
Fixed
Design
Colour of housing: Silver gray
Electric
System power: 20 W
Appliance Class: I
Information regarding emergency functions
Emergency lighting only
Emergency sign: N/A
Protection
IP: 65
IK: 08
Designation labels: CE

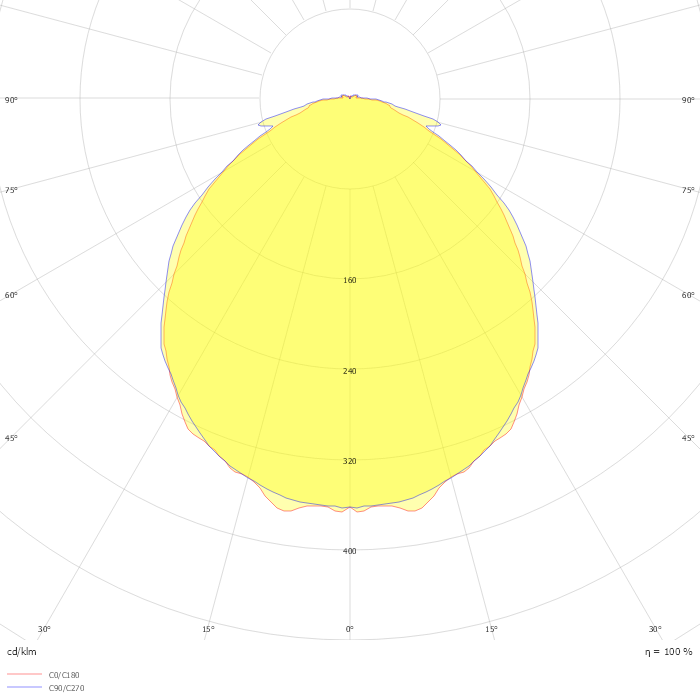

Photometric data
ZIP file
