Product data sheet

UNI-BRIGHT Xline Strip - housing white - WW

XLS665W

Proled (MBN GmbH)

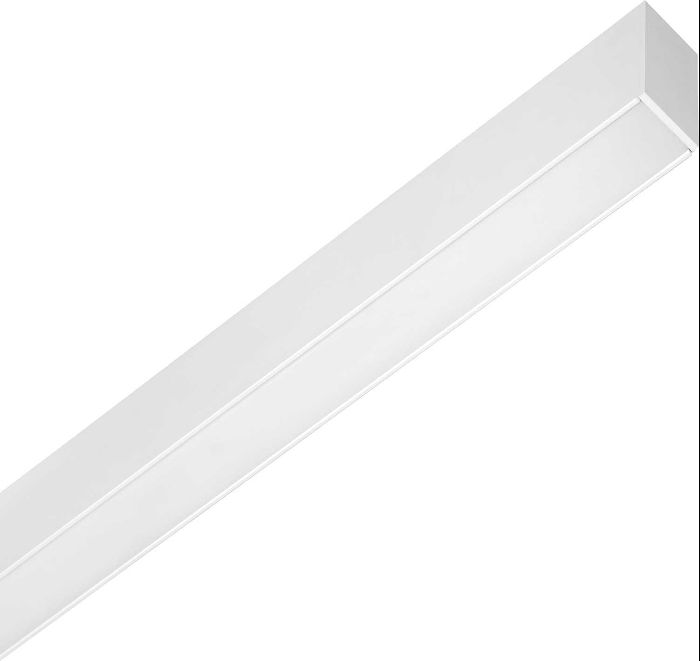

Product image 1: UNI-BRIGHT Xline Strip - housing white - WW
Product image 1: UNI-BRIGHT Xline Strip - housing white - WW

Product image 1: UNI-BRIGHT Xline Strip - housing white - WW



IP
20

Design aluminium profile equipped with Philips LED strip and acrylic cover, ensuring a powerful and uniform light distribution and a unique stylish atmosphere.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 39 W 3200 lm 82 lm/W 3000 K 80
UNI-BRIGHT Xline Strip - housing white - WW

UNI-BRIGHT Xline Strip - housing white - WW

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 1875 mm

Width: 34 mm

Height: 80 mm

Weight: 4 kg

Adjustability

Fixed

Electric

System power: 39 W

Controller: Dimmable 1..10V

Appliance Class: I

Protection

IP: 20

Other operating numbers

Ambient temperature range: -10...45°C

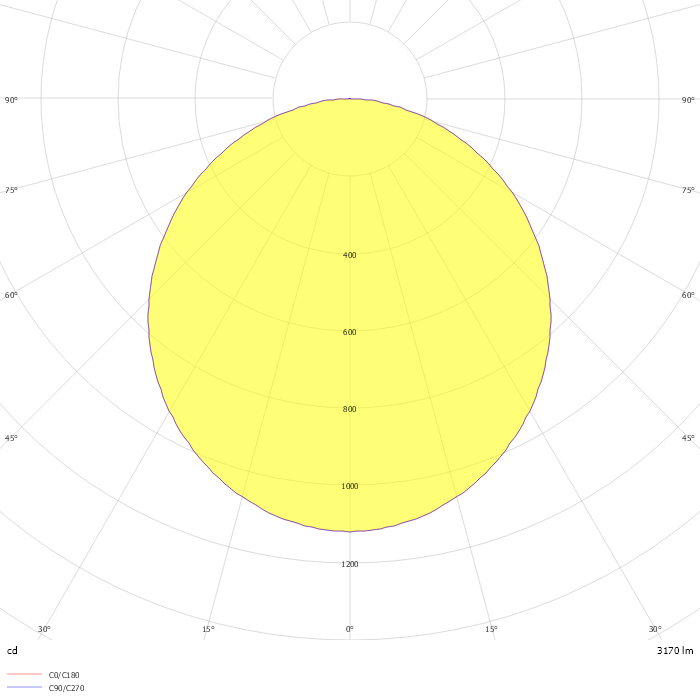

Photometric data

ZIP file

Download file
