Product data sheet

MEDICA 1 LED n/t 39W 3900lm 4000K IP65 glass white

070101.5L02.202

LUG

Product image 1: MEDICA 1 LED n/t 39W 3900lm 4000K IP65 glass white
Product image 1: MEDICA 1 LED n/t 39W 3900lm 4000K IP65 glass white

Product image 1: MEDICA 1 LED n/t 39W 3900lm 4000K IP65 glass white



IP
65

IK
06

Modern clean room light fixture feautring high efficacy LED light sources. Mounting: directly on the ceiling Body: powder-painted steel sheet Power: 220-240V 50/60Hz Lifetime (L80B10): 50 000 h Operating temperature range: 0˚C ... +35˚C Additional information: Wire diameter: min. ø8mm, max. ø13mm. Warranty: 5 years Application: hospitals, laboratories, clinics

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 39 W 3900 lm 100 lm/W 4000 K 80
MEDICA 1 LED n/t 39W 3900lm 4000K IP65 glass white

MEDICA 1 LED n/t 39W 3900lm 4000K IP65 glass white

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 656 mm

Width: 656 mm

Height: 82 mm

Adjustability

Fixed

Design

Colour of housing: White

Glare protection

Glare protection: UGR < 19

Electric

System power: 39 W

Appliance Class: I

Protection

IP: 65

IK: 06

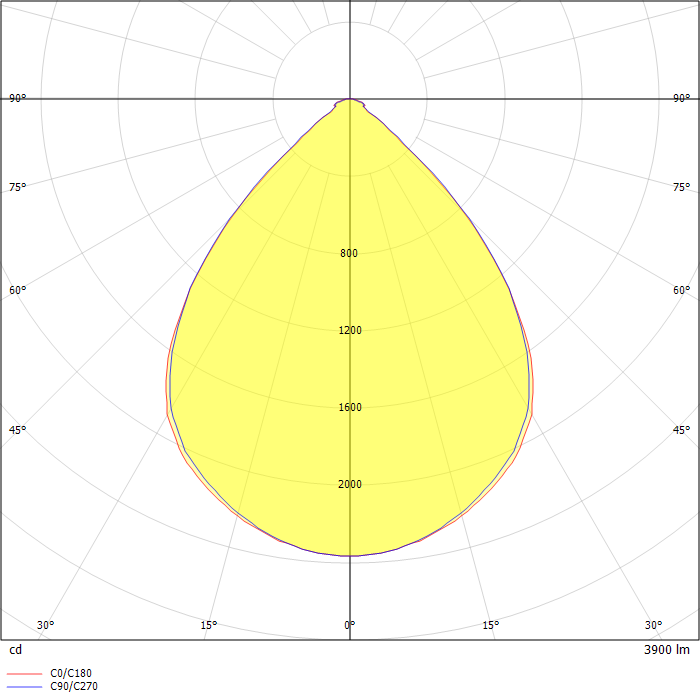

Photometric data

ZIP file

Download file
