Product data sheet

VAL Valet LED Tunnel

VAL-E03-LED-E-U-GL4-HSS-7060

Cooper Lighting

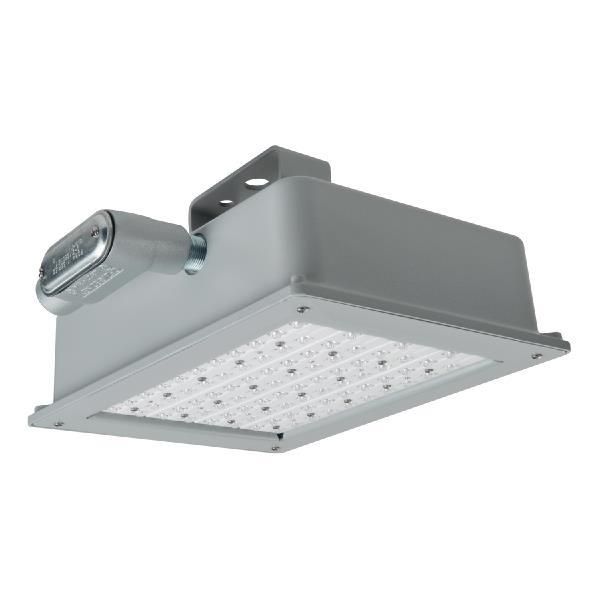

Product image 1: VAL Valet LED Tunnel
Product image 1: VAL Valet LED Tunnel

Product image 1: VAL Valet LED Tunnel



IP
47

IP66 and 3G vibration rated, One-piece, low copper die-cast aluminum housing, Formed aluminum faceplate is secured via 4 stainless steel fasteners, Offered standard in 4000K (+/- 275K) CCT and nominal 70 CRI, Suitable for operation in -40°C to 40°C ambient environments, 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation, 10 kV surge protection, Five-year warranty, Available in 5 mounting configurations. J-box mount standard

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 75.2 W 6076 lm 81 lm/W 5700 K 70
VAL Valet LED Tunnel

VAL Valet LED Tunnel

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 52 mm

Width: 305 mm

Height: 30 mm

Adjustability

Fixed

Electric

System power: 75.2 W

Protection

IP: 47

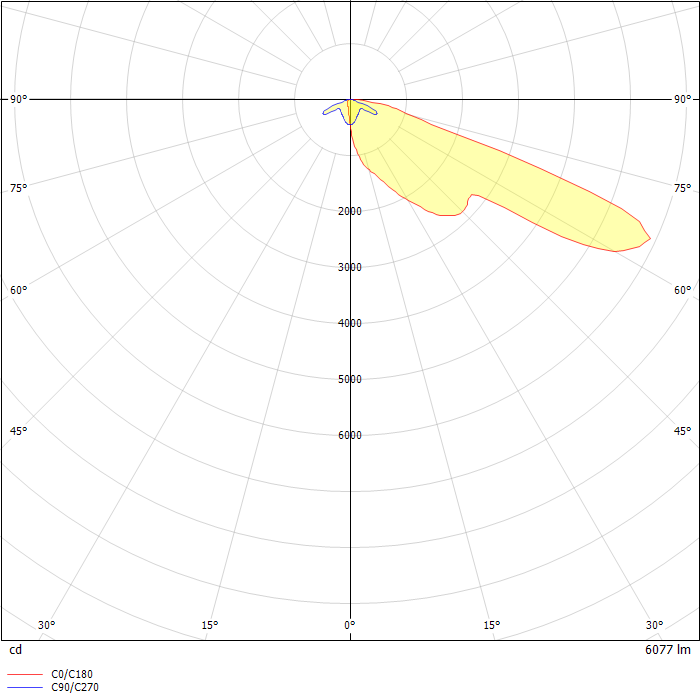

Photometric data

ZIP file

Download file
