Product data sheet

AVN F2 LED 18L70 WST BPSW CL1 D76 L730

96265445

Thorn Lighting

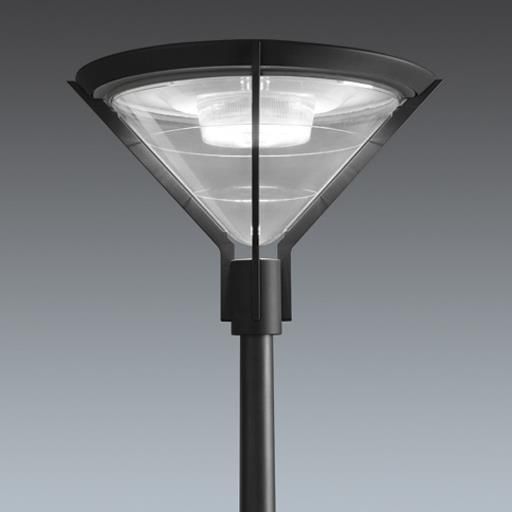

Decorative post-top lantern with street distribution. Equipped with power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Class I electrical, IP66, IK08. Base and arms: die-cast aluminium (LM6), Canopy: spun aluminium, all powder coated dark sandy grey 900 (close to RAL7043). Diffuser: clear polycarbonate. Screw fixings: stainless steel. Supplied complete in one box. Complete with 3000K LED Post top mounted on a spigot of Ø76mm, length 100mm. Dimensions: Ø700/700 x 500 mm Total power: 40 W Weight: 9.2 kg Scx: 0.17 m² Luminaire efficacy: 91 lm/W

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 40 W 3650 lm 91 lm/W 3000 K 70
AVN F2 LED 18L70 WST BPSW CL1 D76 L730

AVN F2 LED 18L70 WST BPSW CL1 D76 L730

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 700 mm

Width: 700 mm

Height: 500 mm

Weight: 9.2 kg

Design

Material impression: Aluminum

Electric

System power: 40 W

Voltage: 230 V AC

Appliance Class: I

Protection

IP: 66

IK: 08

Designation labels: CE

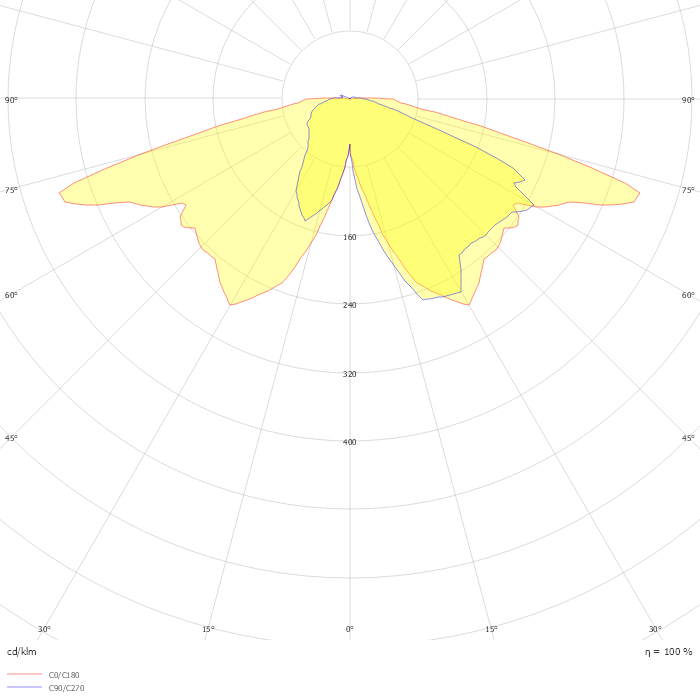

Photometric data

ZIP file
